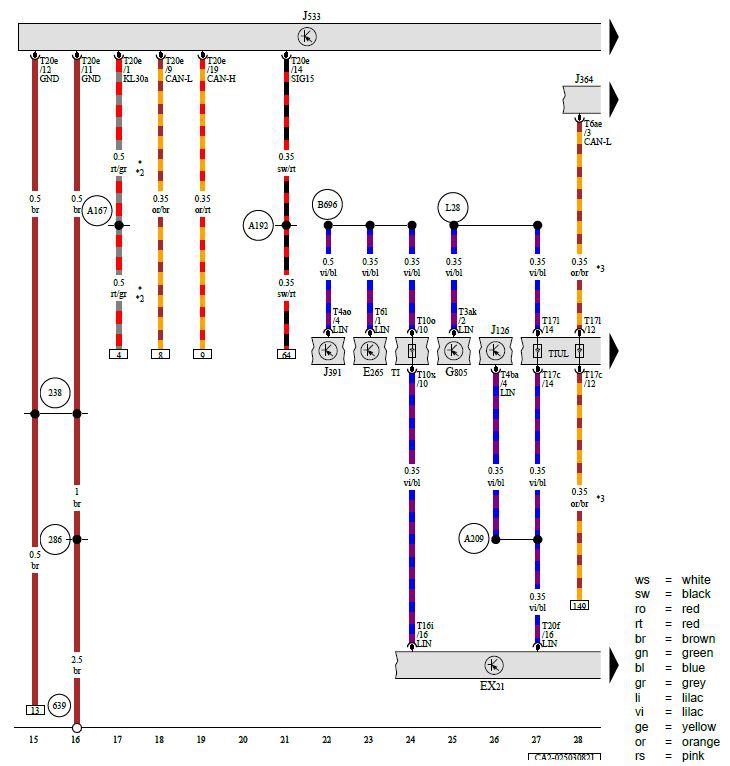

Heater and A/C Controls, Refrigerant Circuit Pressure Sensor, Fresh Air Blower Control Module, Auxiliary Heater Control Module
EX21 - Heater and A/C Controls
E265 - Rear A/C Display Control Head
G805 - Refrigerant Circuit Pressure Sensor
J126 - Fresh Air Blower Control Module
J364 - Auxiliary Heater Control Module
J391 - Rear Fresh Air Blower Control Module
J533 - Data Bus on Board Diagnostic Interface
T3ak - 3-Pin Connector, Black
T4ao - 4-Pin Connector, Black
T4ba - 4-Pin Connector, Black
T6ae - 6-Pin Connector
T6l - 6-Pin Connector, Black
T10o - 10-Pin Connector, Black
T10x - 10-Pin Connector, Black
T16i - 16-Pin Connector, Black
T17c - 17-Pin Connector, Red
T17l - 17-Pin Connector, Red
T20e - 20-Pin Connector, Black
T20f - 20-Pin Connector, Black
TI - Coupling Point in Interior
TIUL - Coupling Point in Interior, Bottom Left
238 - Ground Connection 1 (in Interior Wiring Harness)
286 - Ground Connection 8 (in Interior Wiring Harness)
639 - Ground Connection on Left A-Pillar
A167 - Positive Connection 3 (30a) (in Instrument Panel Wiring Harness)
A192 - Positive Connection 3 (15a) (in Instrument Panel Wiring Harness)
A209 - LIN Bus Connection 1 (in Instrument Panel Wiring Harness)
B696 - A/C System Connection 1 (in Main Wiring Harness)
L28 - Connection (in Climatronic Engine/Motor Compartment Wiring Harness)
* - For Vehicles with Engine Remote Start
*2 - For Vehicles with Engine Remote Start Setup
*3 - For Vehicles with a Parking Heater
