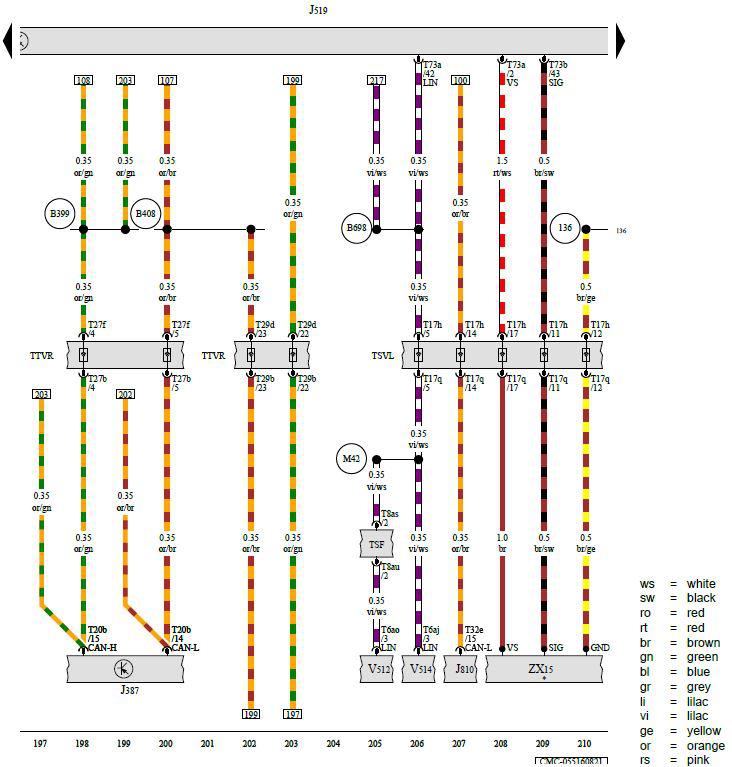

Vehicle Electrical System Control Module, Driver Side Heated Seat
J387 - Front Passenger Door Control Module
J519 - Vehicle Electrical System Control Module
J810 - Driver Seat Adjustment Control Module
T6aj - 6-Pin Connector, Black
T6ao - 6-Pin Connector, Black
T8as - 8-Pin Connector
T8au - 8-Pin Connector
T17h - 17-Pin Connector, Red
T17q - 17-Pin Connector, Red
T20b - 20-Pin Connector, White
T27b - 27-Pin Connector, Black
T27f - 27-Pin Connector, Black
T29b - 29-Pin Connector, White
T29d - 29-Pin Connector, White
T32e - 32-Pin Connector, Gray
T73a - 73-Pin Connector, Black
T73b - 73-Pin Connector, Black
TSF - Driver Seat Backrest Coupling Point
TSVL - Left Front Seat Coupling Station
TTVR - Right Front Door Coupling Point
V512 - Left Front Seat Backrest Fan 1
V514 - Left Front Seat Cushion Fan 1
ZX15 - Driver Side Heated Seat
136 - Ground Connection 2 (in Heated Seats Wiring Harness)
B399 - Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)
B408 - Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)
B698 - LIN Bus Connection 3 (in Main Wiring Harness)
M42 - Connection 2 (in Driver Seat Wiring Harness)
* - Pre-Wired Component
