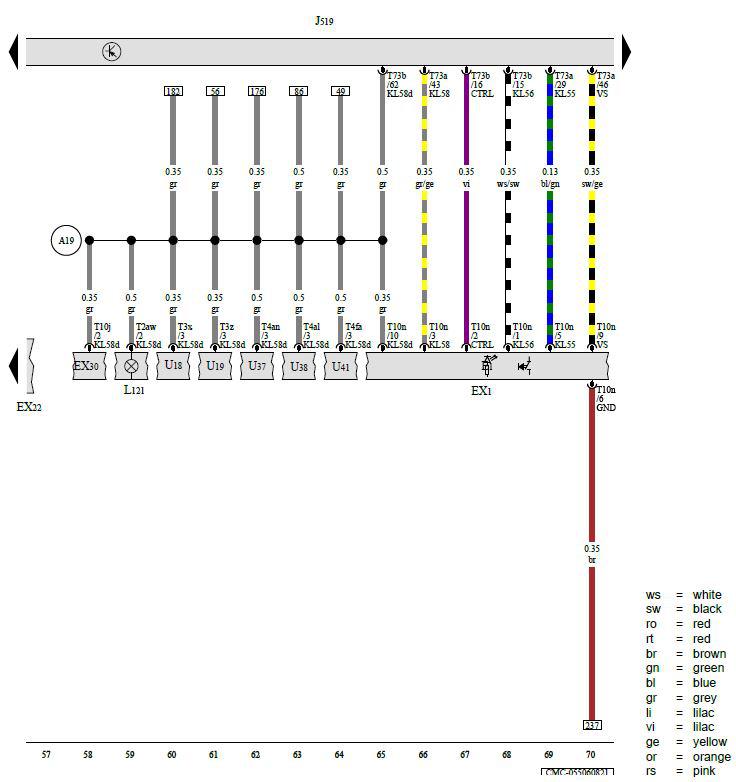

Center Instrument Panel Switch Module, Vehicle Electrical System Control Module, Cupholder Illumination Bulb

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX1 -  Rotary Light Switch

E1 -  Light Switch

EX22 -  Center Instrument Panel Switch Module

EX30 -  Center Console Switch Module 2

J519 -  Vehicle Electrical System Control Module

L121 -  Cupholder Illumination Bulb

T2aw -  2-Pin Connector, Black

T3x -  3-Pin Connector

T3z -  3-Pin Connector

T4al -  4-Pin Connector, Brown

T4an -  4-Pin Connector, Brown

T4fa -  4-Pin Connector, Red

T10j -  10-Pin Connector, Black

T10n -  10-Pin Connector, Red

T73a -  73-Pin Connector, Black

T73b -  73-Pin Connector, Black

U18 -  12 V Socket 2

U19 -  12 V Socket 3

U37 -  USB Charging Socket 1

U38 -  USB Charging Socket 2

U41 -  USB Connection 1

A19 -  Connection 58d (in Instrument Panel Wiring Harness)
