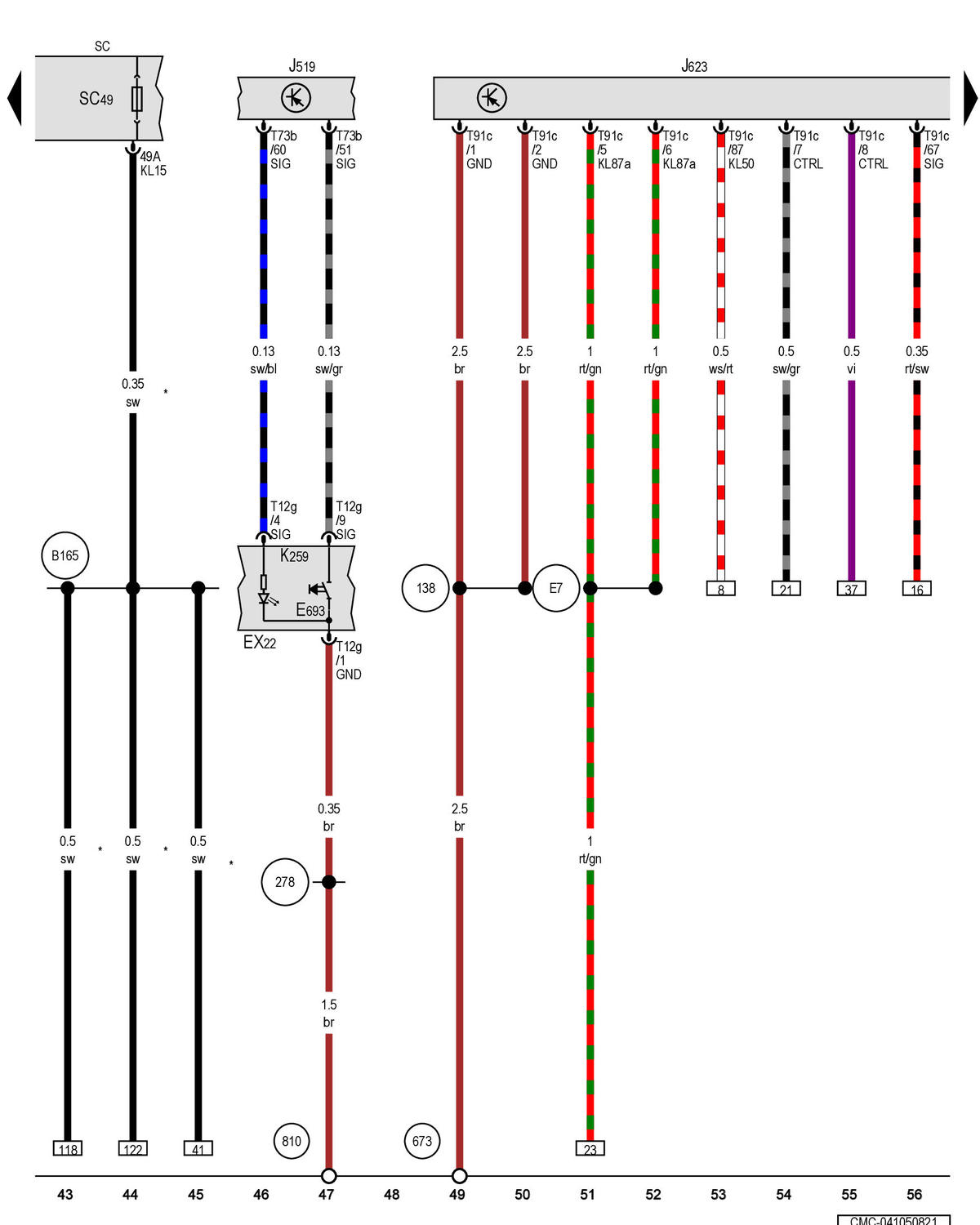

Center Instrument Panel Switch Module, Vehicle Electrical System Control Module, Engine/Motor Control Module, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX22

Center Instrument Panel Switch Module

E693

Start/Stop Mode Button

J519

Vehicle Electrical System Control Module

J623

Engine/Motor Control Module

K259

Start/Stop Mode Indicator Lamp

Fuse Panel C

SC49

Fuse 49 (On Fuse Panel C)

T12g

12-Pin Connector, Black

T73b

73-Pin Connector, Black

T91c

91-Pin Connector, Black

138 Control Module Ground Connection (in Motronic Multiform Fuel Injection Wiring Harness)

278 Ground Connection 4 (in Interior Wiring Harness)

673 Ground Connection 3 on Left Front Longitudinal Member

810 Ground Connection on Left Center Instrument Panel Central Tube

B165 Positive Connection 2 (15) (in Interior Wiring Harness)

E7 Connection 87a (in Motronic Multiform Fuel Injection Wiring Harness)

* For Vehicles with Engine Remote Start Setup
