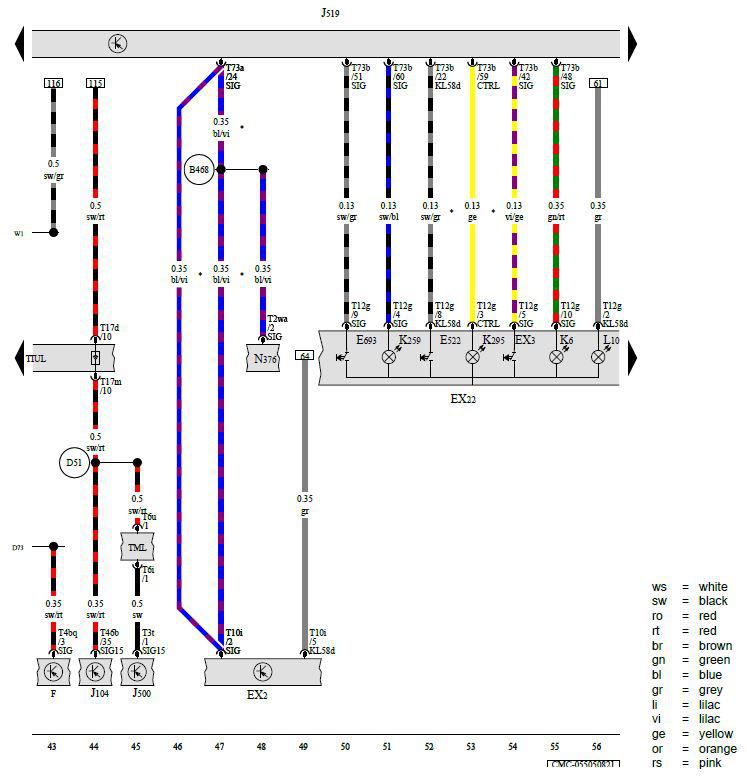

Emergency Flasher Switch, Center Instrument Panel Switch Module, Steering Wheel Heating Button, Start/Stop Mode Button, Vehicle Electrical System Control Module, Emergency Flasher Indicator Lamp, Start/Stop Mode Indicator Lamp, Steering Wheel Heating Indicator Lamp, Instrument Cluster Illumination Bulb
EX3 - Emergency Flasher Switch
EX22 - Center Instrument Panel Switch Module
E522 - Steering Wheel Heating Button
E693 - Start/Stop Mode Button
F - Brake Lamp Switch
J104 - ABS Control Module
J500 - Power Steering Control Module
J519 - Vehicle Electrical System Control Module
K6 - Emergency Flasher Indicator Lamp
K259 - Start/Stop Mode Indicator Lamp
K295 - Steering Wheel Heating Indicator Lamp
L10 - Instrument Cluster Illumination Bulb
N376 - Ignition Switch Key Lock Solenoid
T2wa - 2-Pin Connector, Black
T3t - 3-Pin Connector, Black
T4bq - 4-Pin Connector, Black
T6i - 6-Pin Connector, Black
T6u - 6-Pin Connector, Black
T10i - 10-Pin Connector, Black
T12g - 12-Pin Connector, Black
T17d - 17-Pin Connector, Blue
T17m - 17-Pin Connector, Blue
T46b - 46-Pin Connector, Black
T73a - 73-Pin Connector, Black
T73b - 73-Pin Connector, Black
TIUL - Coupling Point in Interior, Bottom Left
TML - Coupling Point in Engine/Motor Compartment, Left
B468 - Connection 4 (in Main Wiring Harness)
D51 - Positive Connection 1 (15) (in Engine/Motor Compartment Wiring Harness)
D73 - Positive Connection (54) (in Engine/Motor Compartment Wiring Harness)
W1 - Positive Connection 1 (54) (in Rear Wiring Harness)
* - Depending on Equipment
