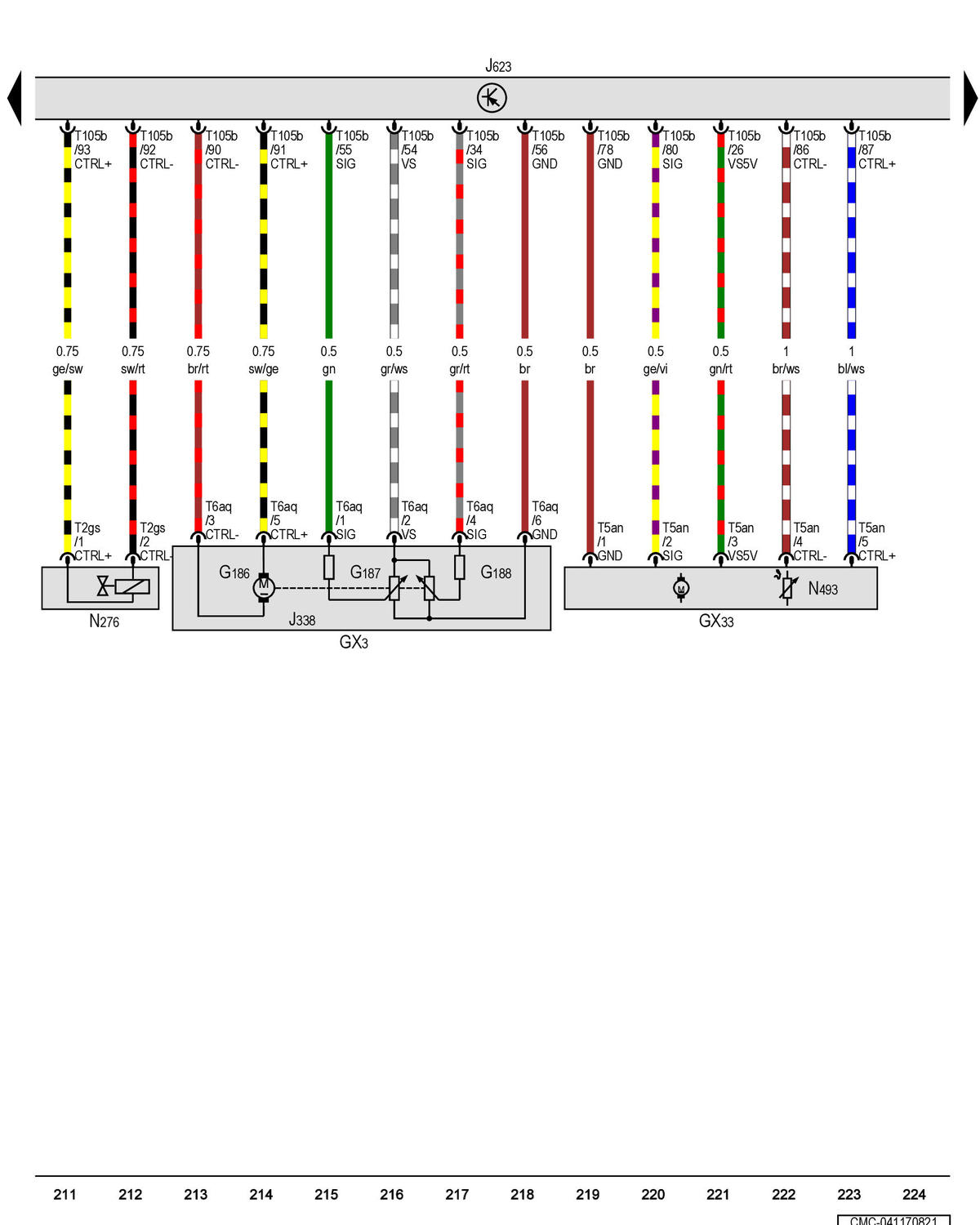

Throttle Valve Control Module, Engine Temperature Control Module, Engine/Motor Control Module, Fuel Pressure Regulator Valve

GWWCMC-041170821Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

GX3

Throttle Valve Control Module

GX33

Engine Temperature Control Module

G186

EPC Throttle Drive

G187

EPC Throttle Drive Angle Sensor 1

G188

EPC Throttle Drive Angle Sensor 2

J338

Throttle Valve Control Module

J623

Engine/Motor Control Module

N276

Fuel Pressure Regulator Valve

N493

Engine Temperature Control Actuator

T2gs

2-Pin Connector, Black

T5an

5-Pin Connector, Black

T6aq

6-Pin Connector, Black

T105b

105-Pin Connector, Black
