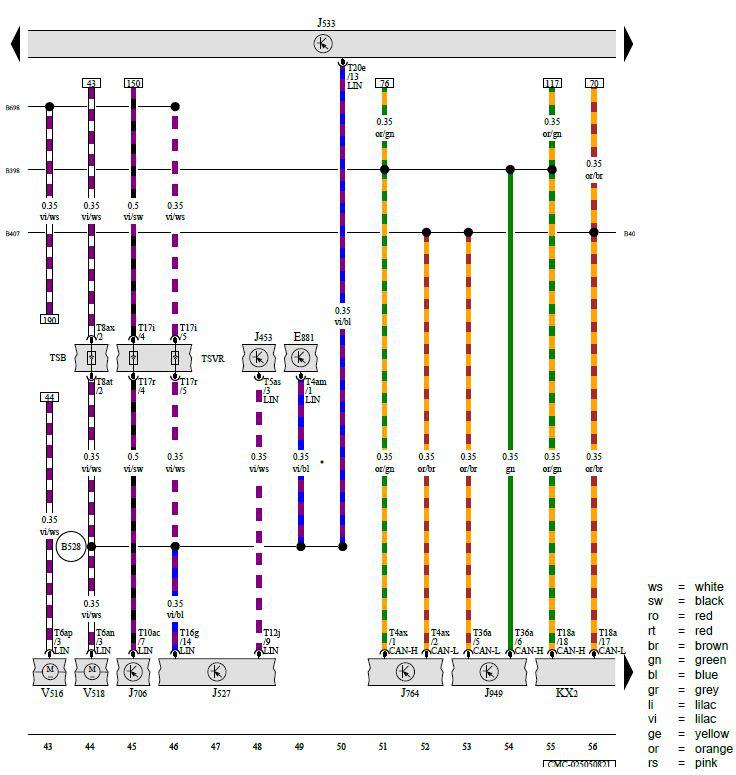

Driving Profile Selection Control Head, Steering Column Electronics Control Module, Passenger Occupant Detection System Control Module, Electronic Steering Column Lock Control Module, Control Module for Emergency Call Module and Communication Unit, Instrument Cluster, Right Front Seat Backrest Fan 1, Right Front Seat Cushion Fan 1
E881 - Driving Profile Selection Control Head
J453 - Multifunction Steering Wheel Control Module
J527 - Steering Column Electronics Control Module
J533 - Data Bus on Board Diagnostic Interface
J706 - Passenger Occupant Detection System Control Module
J764 - Electronic Steering Column Lock Control Module
J949 - Control Module for Emergency Call Module and Communication Unit
KX2 - Instrument Cluster
T4am - 4-Pin Connector, Black
T4ax - 4-Pin Connector, Black
T5as - 5-Pin Connector
T6an - 6-Pin Connector, Black
T6ap - 6-Pin Connector, Black
T8at - 8-Pin Connector, Black
T8ax - 8-Pin Connector, Black
T10ac - 10-Pin Connector, Black
T12j - 12-Pin Connector
T16g - 16-Pin Connector, Black
T17i - 17-Pin Connector, Red
T17r - 17-Pin Connector, Red
T18a - 18-Pin Connector, Black
T20e - 20-Pin Connector, Black
T36a - 36-Pin Connector
TSB - Front Passenger Seat Backrest Coupling Point
TSVR - Right Front Seat Coupling Station
V516 - Right Front Seat Backrest Fan 1
V518 - Right Front Seat Cushion Fan 1
B398 - Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407 - Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B528 - LIN Bus Connection 1 (in Main Wiring Harness)
B698 - LIN Bus Connection 3 (in Main Wiring Harness)
* - For AWD Vehicles
