Transmission Control Module, Removing And Installing: Removing

-- Remove the windshield wiper arms. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

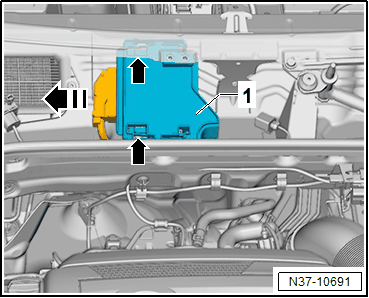

-- Push the locking tabs -arrows- upward and pull the control module to the left out of the bracket in direction of -left arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the connector and remove it from the control module.
