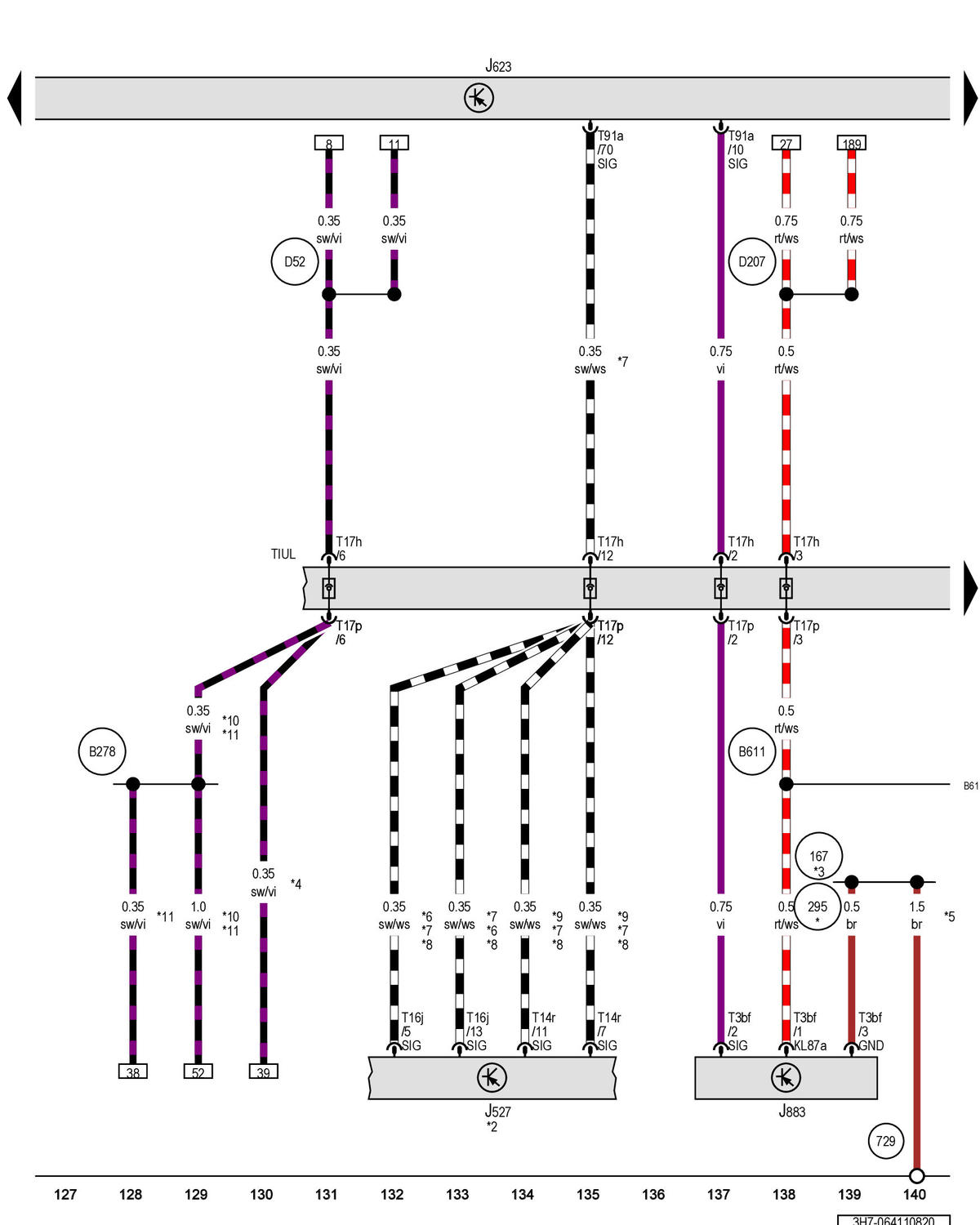

Steering Column Electronics Control Module, Engine/Motor Control Module, Exhaust Door Control Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J527

Steering Column Electronics Control Module

J623

Engine/Motor Control Module

J883

Exhaust Door Control Unit

T3bf

3-Pin Connector, Black

T14r

14-Pin Connector, Black

T16j

16-Pin Connector, Black

T17h

17-Pin Connector, Blue

T17p

17-Pin Connector, Blue

T91a

91-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

167

Ground Connection 4 (in Engine/Motor Compartment Wiring Harness)

295

Ground Connection 10 (in Interior Wiring Harness)

729

Ground Connection on Left Rear Wheel Housing

B278

Positive Connection 2 (15a) (in Main Wiring Harness)

B611

Connection 7 (in Interior Wiring Harness)

D52

Positive Connection (15a) (in Engine/Motor Compartment Wiring Harness)

D207

Connection 7 (87A) (in Engine/Motor Compartment Wiring Harness)

Coupe

Refer to Applicable Wiring Diagram

Sportback

For Vehicles Without Engine Remote Start

Diameter Depends on Equipment

For Vehicles Without Heated Steering Wheel

For Vehicles with Cruise Control System

Through July 2018

For Vehicles with Heated Steering Wheel

*10

For Vehicles with Engine Remote Start

*11

For Vehicles with Engine Remote Start Setup
