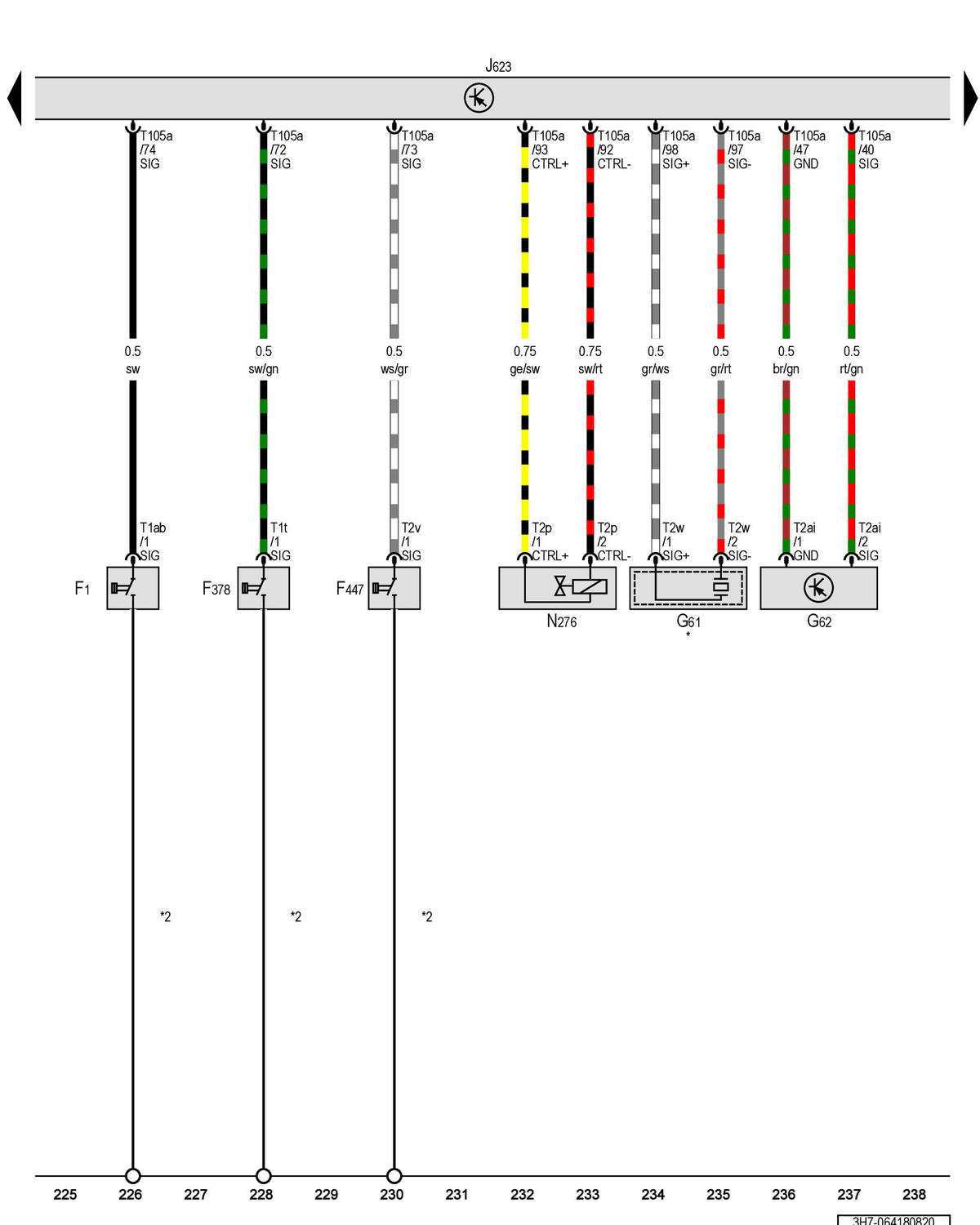

Oil Pressure Switch, Reduced Oil Pressure Switch, Oil Pressure Switch, Level 3, Knock Sensor 1, Engine Coolant Temperature Sensor, Engine/Motor Control Module, Fuel Pressure Regulator Valve

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

F1

Oil Pressure Switch

F378

Reduced Oil Pressure Switch

F447

Oil Pressure Switch, Level 3

G61

Knock Sensor 1

G62

Engine Coolant Temperature Sensor

J623

Engine/Motor Control Module

N276

Fuel Pressure Regulator Valve

T1ab

1-Pin Connector, Blue

T1t

1-Pin Connector, Black

T2ai

2-Pin Connector, Black

T2p

2-Pin Connector, Black

T2v

2-Pin Connector, Black

T2w

2-Pin Connector, Black

T105a

105-Pin Connector, Black

*

Pre-Wired Component

*2

Ground Supply via the Housing
