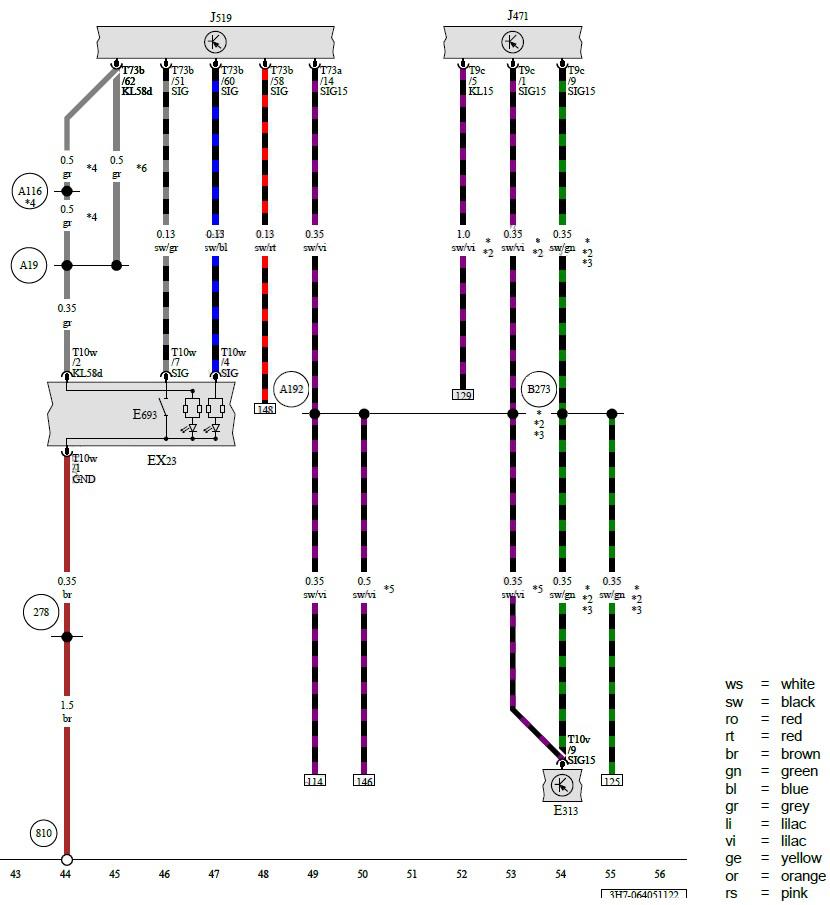

Center Console Switch Module 1, Selector Lever, Remote Start System Relay, Vehicle Electrical System Control Module
EX23 Center Console Switch Module 1
E313 Selector Lever
E693 Start/Stop Mode Button
J471 Remote Start System Relay
J519 Vehicle Electrical System Control Module
T9c 9-Pin Connector, Gray
T10v 10-Pin Connector, Black
T10w 10-Pin Connector, Black
T73a 73-Pin Connector, Black
T73b 73-Pin Connector, Black
278 Ground Connection 4 (in Interior Wiring Harness)
810 Ground Connection on Left Center Instrument Panel Central Tube
A19 Connection 58d (in Instrument Panel Wiring Harness)
A116 Connection 58d (in Instrument Panel Wiring Harness) 2
A192 Positive Connection 3 (15a) (in Instrument Panel Wiring Harness)
B273 Positive Connection (15) (in Main Wiring Harness)
* For Vehicles with Engine Remote Start
*2 For Vehicles with Engine Remote Start Setup
*3 For USA Only
*4 From November 2020
*5 For Vehicles Without Engine Remote Start
*6 Through November 2020
