Sunlight Photo Sensor -G107-, Removing And Installing: Removing

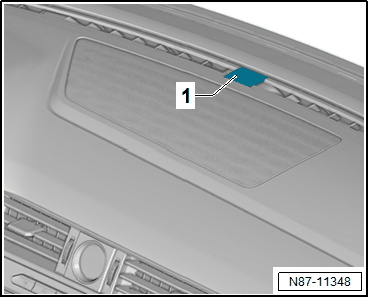

-- Unclip the Sunlight Photo Sensor - G107- -1- upward out of the instrument panel.

GWWN87-11348Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector.
