Rear Vent Temperature Sensor -G174-, Removing And Installing: Removing

NOTE:

Only for vehicles with Climatronic. For vehicles with an electric-manual climate control system, the openings in the air ducts are sealed with plugs.

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

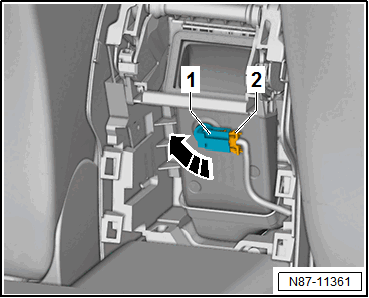

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the vent temperature sensor -1- in the direction of -arrow- and remove it from the mount.
