Left Vent Temperature Sensor -G150-, Removing And Installing: Installing

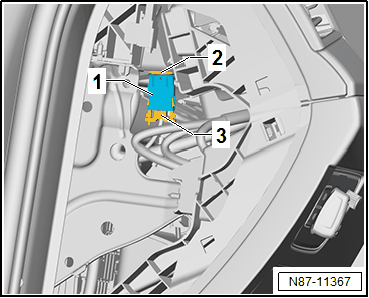

GWWN87-11367Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace the seal -2- if it is damaged or faulty.

-- Connect the connector -3-.

-- Place the Left Vent Temperature Sensor -G150- -1- in the mount and turn it 90°.

NOTE:

An incorrectly installed vent temperature sensor causes flow-generated noise.

-- Check the DTC memory and erase any displayed entries. Refer to Vehicle Diagnostic Tester in the "Guided Fault Finding"  function.
