Front Door Window, Removing And Installing: Installing
WARNING: This page is about a different car, the 2020 Volkswagen Arteon and 2019 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

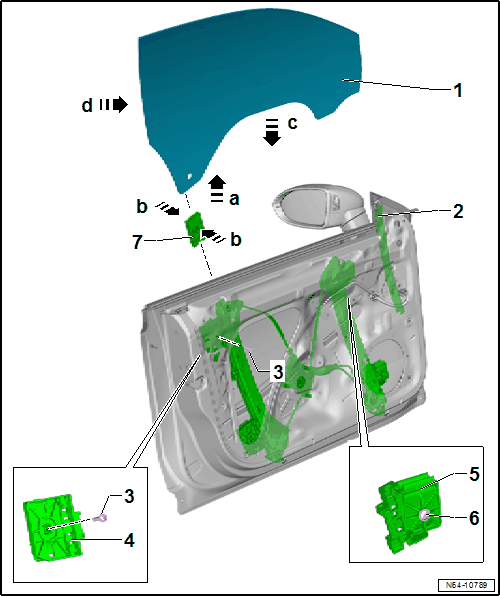

-- Attach the clip -7- to the door window -arrow a- and fold it up -b arrows-.
-- Guide the door window -1- into the door -arrow c-. Make sure the door window is inserted in the window guide -2- correctly.
-- Without using any pressure, guide the door window -arrow c- into the clamping brackets -4 and 5-.
-- Align the door window to the window guide -arrow d-.
-- Tighten the bolts -3 and 6-.
-- Replace the adhesive pads, if necessary. Refer to OVERVIEW - DOOR COMPONENTS for diameter.
Perform the rest of the installation in the reverse order of removal.
-- Check the height and length of the door window and adjust if necessary. Refer to FRONT DOOR WINDOW, ADJUSTING .
-- A function test must be performed before the door trim panel is installed.
