Overview - Emissions Control System, SHARAN

WARNING: This page is about a different car, the 2020 Volkswagen Arteon and 2019 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

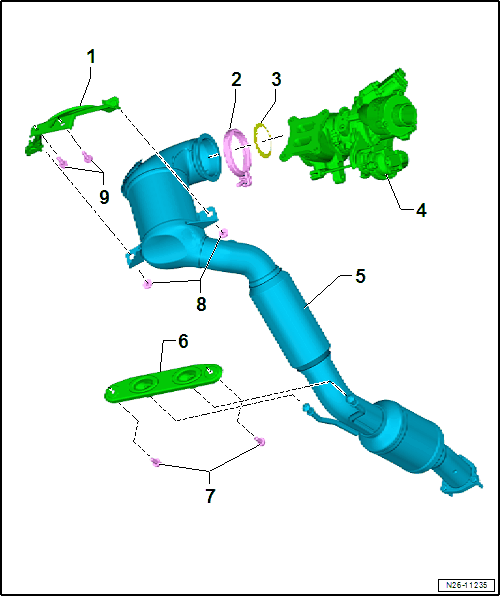

Bracket
- For catalytic converter
Screw-Type Clamp
- Replace
- Installation position. Refer to Fig 1.
- Tightening specification and sequence. Refer to Fig 2.
Seal
- Replace
Turbocharger
- Removing and Installing. Refer to TURBOCHARGER .
Catalytic Converter
- With front exhaust pipe
- Protect catalytic converter from shocks and impact stress
- Removing and Installing. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING .
- Exhaust System, Installing without Tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Bracket
- Replace if damaged
Bolts
- 20 Nm
Nuts
Tightening specification and sequence. Refer to Fig 2.
Bolts
Tightening specification and sequence. Refer to Fig 2.

Installation position of the catalytic converter screw-type clamp

Fig 1: Installed Location of the Catalytic Converter Screw Clamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the screw-type clamp in the shown position. The threaded connection must have equal distance to the other components.

Catalytic Converter - Tightening Specification and Sequence

Fig 2: Catalytic Converter - Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the threaded connections in steps in the sequence shown:

Step	Screw-type clamp/nuts	Tightening Specification
1.	-1, 3 and 4-	Install by hand all the way It must be possible to slide the catalytic converter and bracket back and forth.
2.	-2-	Tighten the screw-type clamp to 15 Nm. Note the installation position. Refer to Figure.
3.	-1, 3 and 4-	Tighten to 20 Nm
