Front Peripheral Camera - R243-, Removing and Installing: Removing

Turn off the ignition and all electrical equipment.
Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.
Remove the front bumper cover. Refer to Front Bumper; Bumper Cover Removing and Installing.

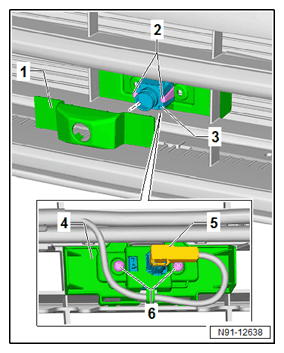

Release and disconnect the connector -5-. -->
Remove the bolts -6-.
Remove the cover -1- toward the front.
Release the retaining tabs -2- on the bracket -4-.
Remove the Front Peripheral Camera - R243- -3- forward out of the bracket -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Remove the washer fluid hose -1- near the front bumper cover bracket -4-.
Unclip the wiring harness on the bracket -4-.
Remove the wiring harness -2- near the bolts -3- from the front bumper cover.
Remove the bolts -3-.
Unclip the bracket -4- from the front bumper cover.
