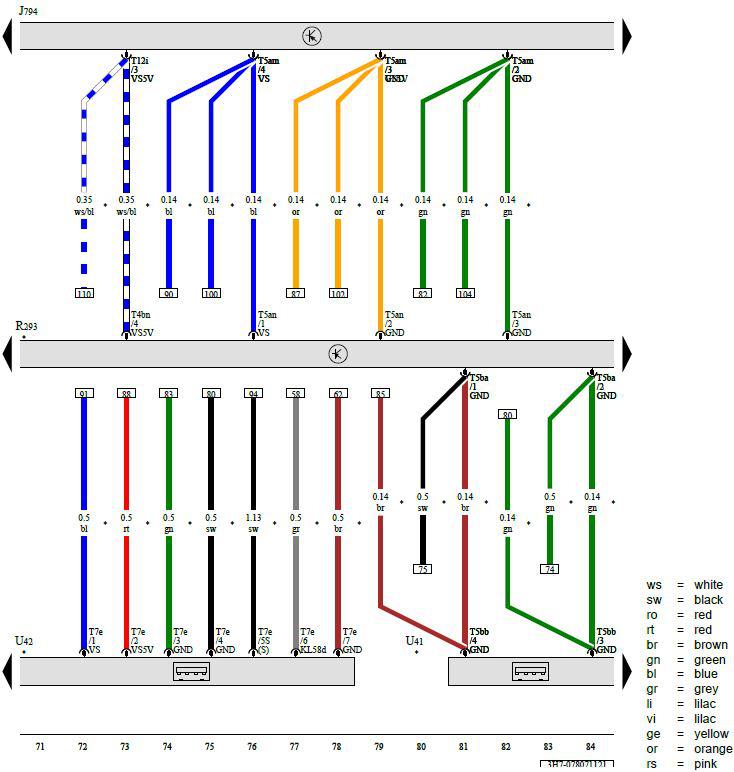

Information Electronics Control Module 1, USB Distributor, USB Connection 1, USB Connection 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J794 -  Information Electronics Control Module 1

R293 -  USB Distributor

T4bn -  4-Pin Connector, Red

T5am -  5-Pin Connector, Yellow

T5an -  5-Pin Connector, Green

T5ba -  5-Pin Connector, Purple

T5bb -  5-Pin Connector, Green

T7e -  7-Pin Connector, Green

T12i -  12-Pin Connector, Green

U41 -  USB Connection 1

U42 -  USB Connection 2

* -  Depending on Equipment
