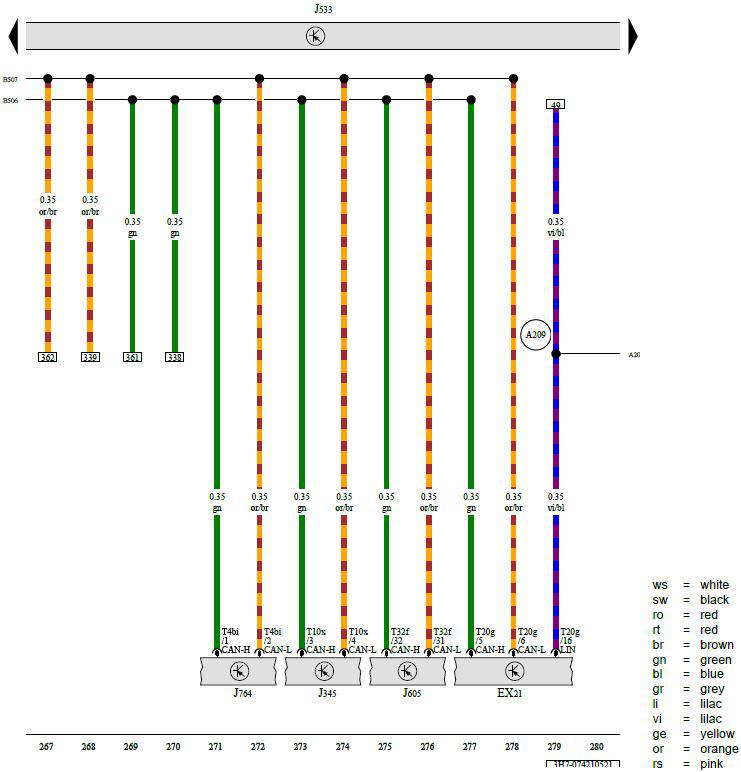

Heater and A/C Controls, Towing Recognition Control Module, Data Bus on Board Diagnostic Interface, Rear Lid Control Module, Electronic Steering Column Lock Control Module
EX21 - Heater and A/C Controls
J345 - Towing Recognition Control Module
J533 - Data Bus on Board Diagnostic Interface
J605 - Rear Lid Control Module
J764 - Electronic Steering Column Lock Control Module
T4bi - 4-Pin Connector, Black
T10x - 10-Pin Connector, Black
T20g - 20-Pin Connector, Black
T32f - 32-Pin Connector, Naturally Cloudy
A209 - LIN Bus Connection 1 (in Instrument Panel Wiring Harness)
B506 - Comfort CAN Bus High Connection (in Interior Wiring Harness)
B507 - Comfort CAN Bus Low Connection (in Interior Wiring Harness)
