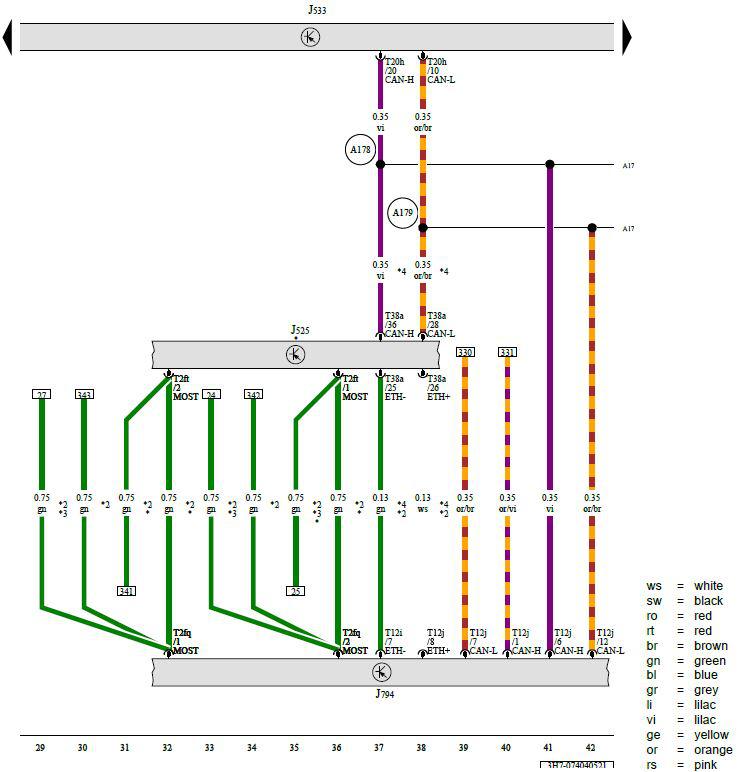

Digital Sound System Control Module, Data Bus on Board Diagnostic Interface, Information Electronics Control Module 1
J525 - Digital Sound System Control Module
J533 - Data Bus on Board Diagnostic Interface
J794 - Information Electronics Control Module 1
T2fq - 2-Pin Connector, Black
T2ft - 2-Pin Connector, Black
T12i - 12-Pin Connector, Green
T12j - 12-Pin Connector, Gray
T20h - 20-Pin Connector, Red
T38a - 38-Pin Connector, Black
A178 - Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)
A179 - Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)
* - For Vehicles with Sound System
*2 - Depending on Equipment
*3 - For Vehicles with TV Tuner
*4 - From July 2019
