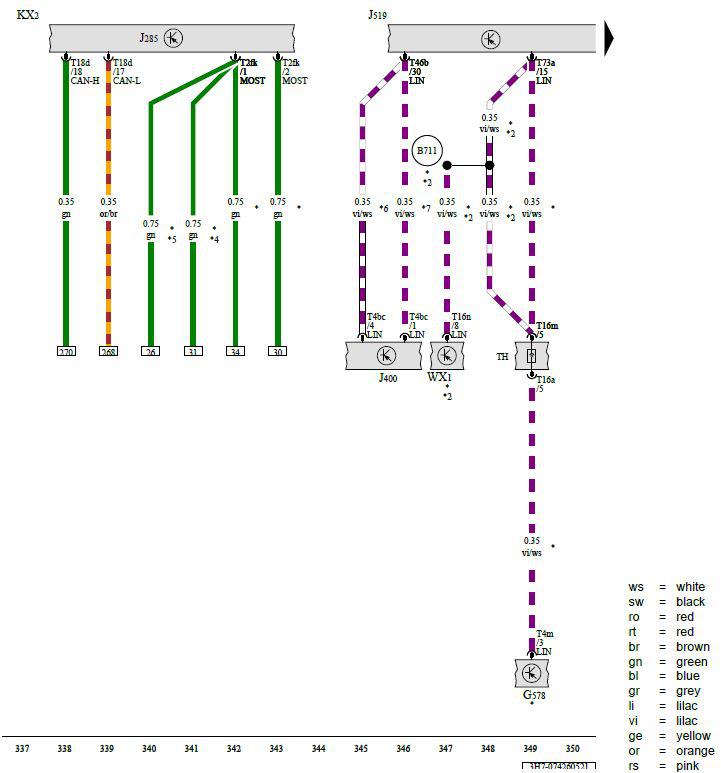

Anti-Theft Alarm System Sensor, Wiper Motor Control Module, Vehicle Electrical System Control Module, Instrument Cluster, Front Interior Lamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G578 -  Anti-Theft Alarm System Sensor

J285 -  Instrument Cluster Control Module

J400 -  Wiper Motor Control Module

J519 -  Vehicle Electrical System Control Module

KX2 -  Instrument Cluster

T2fk -  2-Pin Connector, Black

T4bc -  4-Pin Connector, Black

T4m -  4-Pin Connector, Black

T16a -  16-Pin Connector, Brown

T16m -  16-Pin Connector, Brown

T16n -  16-Pin Connector, Black

T18d -  18-Pin Connector, Black

T46b -  46-Pin Connector, Black

T73a -  73-Pin Connector, Black

TH -  Coupling Point on Roof

WX1 -  Front Interior Lamp

B711 -  LIN Bus Connection 6 (in Main Wiring Harness)

* -  Depending on Equipment

*2 -  Through June 2021

*3 -  Sportback

*4 -  For Vehicles with Sound System

*5 -  For Vehicles with TV Tuner

*6 -  For RHD Vehicles

*7 -  For LHD Vehicles
