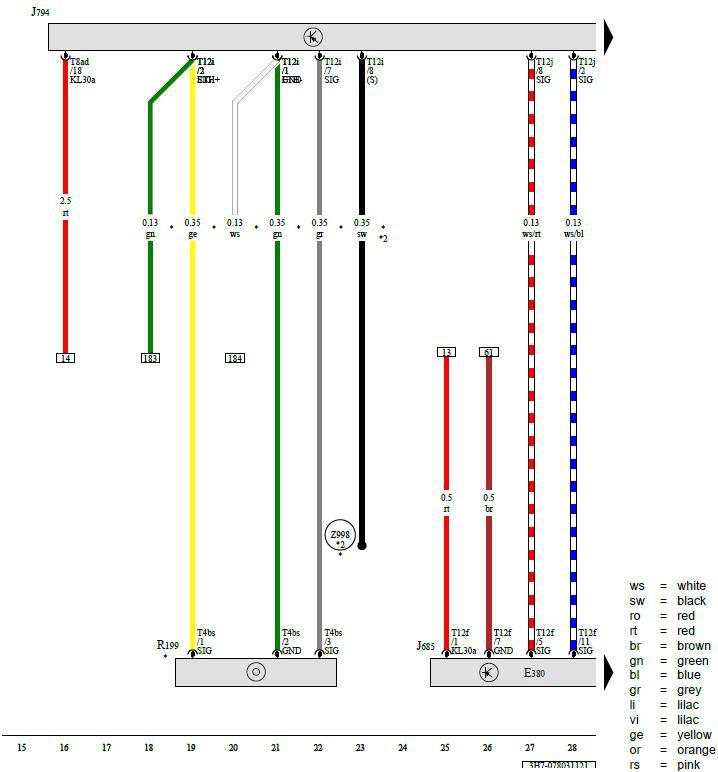

Front Information Display Control Head, Information Electronics Control Module 1, External Audio Source Connection, Cable Shield

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E380 -  Multimedia System Control Head

J685 -  Front Information Display Control Head

J794 -  Information Electronics Control Module 1

R199 -  External Audio Source Connection

T4bs -  4-Pin Connector, Black

T8ad -  8-Pin Connector, Black

T12f -  12-Pin Connector, Black

T12i -  12-Pin Connector, Green

T12j -  12-Pin Connector, Gray

Z998 -  Cable Shield

* -  Depending on Equipment

*2 -  Open Wire End
