Special Tools

WARNING: This page is about a different car, the 2020 Volkswagen Arteon and 2019 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Special Tools - Engine, Securing To Assembly Stand

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Engine Sling: 2024A
Shop Crane: VAS6100
Engine and Transmission Holder: VAS6095A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Engine Support Bridge: 10-222A
Engine Support Bridge - Engine Support 18: 10-222A/18
Engine Support Bridge - Engine Support 29: 10-222A/29 (quantity: 2)
Square Pipe: T40091/1 and Engine Support - Joint Fixture: T40091/3 (quantity: 2) from the Engine Support - Basic Set: T40091
Spindle: T40093/3 (quantity: 2) from Engine Support Supplement Set: T40093B
Engine Support Brackets: T40093/3-6A (quantity: 2) (check and change, if necessary. Refer to the appropriate Service Information )

Special tools and workshop equipment required

Engine/Gearbox Jack - Engine Support: T10359A

Fig 2: Identifying Engine/Gearbox Jack Engine Support
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine/Gearbox Jack - Pin: T10359/2
Engine/Gearbox Jack - Adapter: T10359/3
Transmission Lift Hook: T40013

Fig 3: Identifying Transmission Lift Hook T40013
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Support - Joint Fixture: T40091/3
Spindle: T40093/3 (quantity: 2)

Fig 4: Engine Support - Supplement Kit T40093A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

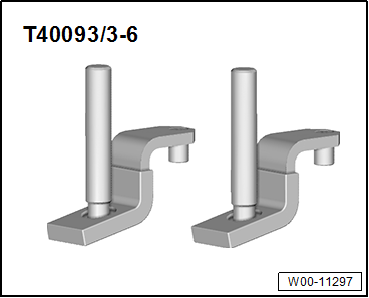

Engine Support Brackets: T40093/3-6A

Fig 5: Identifying Engine Support Brackets
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Bung Set: VAS6122

Fig 6: Engine Bung Set
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine and Gearbox Jack: VAS6931

Fig 7: Engine and Gearbox Jack VAS6931 or VAG1383A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Support Bridge - Additional Hooks (2 pc.): 10-222A/2

Fig 8: Engine Support Bridge Hooks 10-222 A /2
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Support Bridge - Engine Support Feet: 10-222A/8

Fig 9: Identifying Special Tools And Workshop Equipment
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine/Gearbox Support Shackle: 10-222A/12 (quantity: 2)

Fig 10: Engine/Gearbox Support Shackle (10-222A/12)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Support Bridge - Special Hook (2 pc.): 10-222A/20

Fig 11: Identifying Special Hook (2 pc.)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Pry Lever: 80-200

Fig 12: Identifying Pry Lever
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Sling - Engine Bracket: 2024A/1 from the Engine Sling: 2024A

Fig 13: Engine Sling - Engine Bracket
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Securing element from the Transmission Support: 3282

Fig 14: Identifying Transmission Support 3282
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Not Illustrated:
Protective Eyewear
Safety Gloves
Step Ladder
Protective Mat: VAS531003
