Front Peripheral Camera -R243-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2020 Volkswagen Arteon and 2019 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

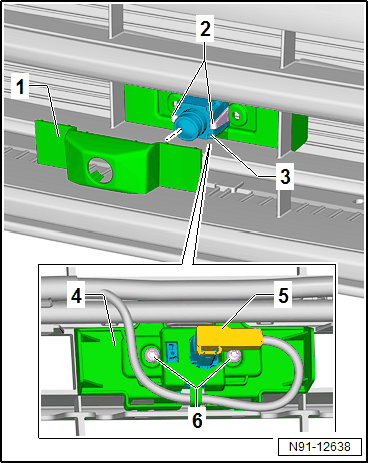

-- Release and disconnect the connector -5-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -6-.

-- Remove the cover -1- toward the front.

-- Release the retaining tabs -2- on the bracket -4-.

-- Remove the Front Peripheral Camera -R243- -3- forward out of the bracket -4-.

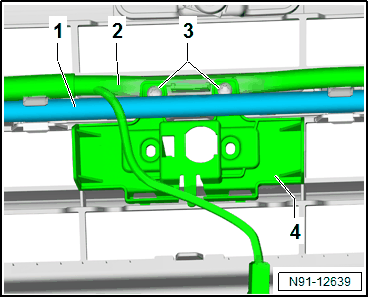

-- Remove the washer fluid hose -1- near the front bumper cover bracket -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the wiring harness on the bracket -4-.

-- Remove the wiring harness -2- near the bolts -3- from the front bumper cover.

-- Remove the bolts -3-.

-- Unclip the bracket -4- from the front bumper cover.
