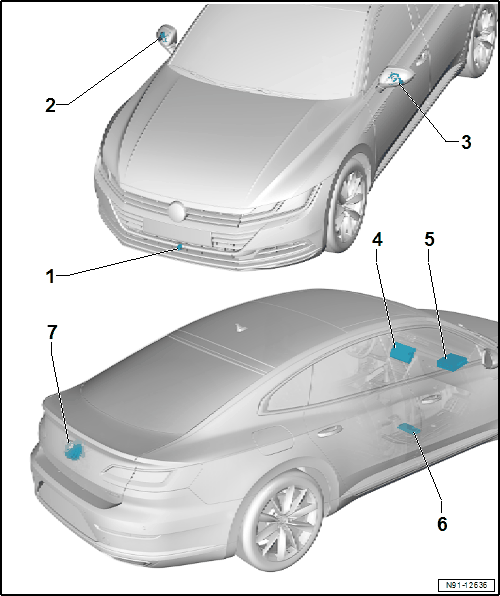

Component Location Overview - Peripheral Camera
WARNING: This page is about a different car, the 2020 Volkswagen Arteon and 2019 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Front Peripheral Camera -R243-
- In the front bumper cover
- Removing and installing. Refer to Front Peripheral Camera -R243-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Right Peripheral Camera -R245-
- In the right exterior rearview mirror
- Removing and installing. Refer to Right Peripheral Camera -R245-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Left Peripheral Camera -R244-
- In the left exterior rearview mirror
- Removing and installing. Refer to Left Peripheral Camera -R244-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Removing and installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Peripheral Camera Control Module -J928-
- Under the right front seat
- Removing and installing. Refer to Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Rear Peripheral Camera -R246-
- Pivoting emblem with Rear Peripheral Camera -R246- and pivoting motor in the rear lid
- Removing and installing. Refer to Rear Peripheral Camera -R246-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
