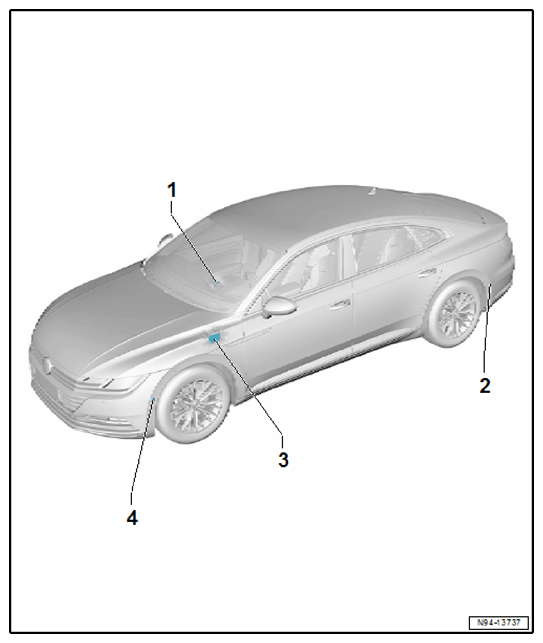

Overview - Parallel Parking Assist
- Parallel Parking Assistance Button - E581-
- Removing and installing. Refer to 2.14 Parallel Parking Assistance Button E581, Removing and Installing .
- Rear Parallel Parking Assist Sensors
- Left Rear Parallel Parking Assistance Sensor - G716-
- Right Rear Parallel Parking Assistance Sensor - G717-
- Removing and installing. Refer to Rear Sensor, Removing and Installing . .
- Parallel Parking Assistance Control Module - J791-
- Removing and installing. Refer to PARKING AID CONTROL MODULE - J446-, REMOVING AND INSTALLING . .
- Parallel Parking Assistance Control Module - J791- Bracket, Removing and installing. Refer to Parallel Parking Assistance Control Module - J791-, Removing and Installing . .
- Parallel Parking Assist Front Sensor
- Left Front Parallel Parking Assistance Sensor - G568-
- Right Front Parallel Parking Assistance Sensor - G569-
- Removing and installing. Refer to Front Sensor, Removing and Installing . .
