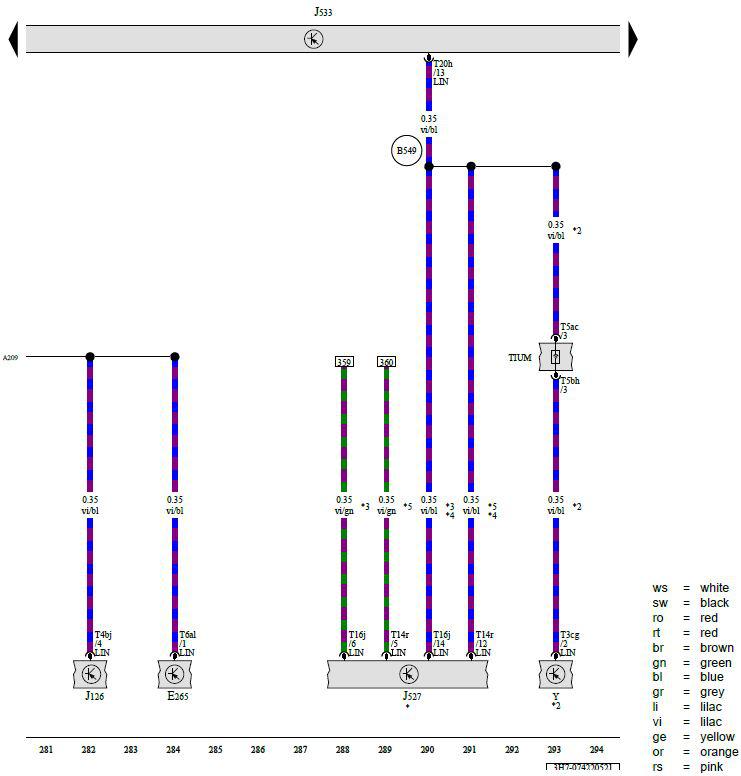

Rear A/C Display Control Head, Fresh Air Blower Control Module, Steering Column Electronics Control Module, Data Bus on Board Diagnostic Interface
E265 - Rear A/C Display Control Head
J126 - Fresh Air Blower Control Module
J527 - Steering Column Electronics Control Module
J533 - Data Bus on Board Diagnostic Interface
T3cg - 3-Pin Connector, Black
T4bj - 4-Pin Connector, Black
T5ac - 5-Pin Connector, Black
T5bh - 5-Pin Connector, Black
T6al - 6-Pin Connector, Black
T14r - 14-Pin Connector, Black
T16j - 16-Pin Connector, Black
T20h - 20-Pin Connector, Red
TIUM - Coupling Point in Interior, Bottom Center
Y - Analog Clock
A209 - LIN Bus Connection 1 (in Instrument Panel Wiring Harness)
B549 - LIN Bus Connection 2 (in Main Wiring Harness)
* - Refer to Applicable Wiring Diagram
*2 - Through July 2020
*3 - For Vehicles Without Heated Steering Wheel
*4 - For Vehicles with a Multifunction Steering Wheel
*5 - For Vehicles with Heated Steering Wheel
