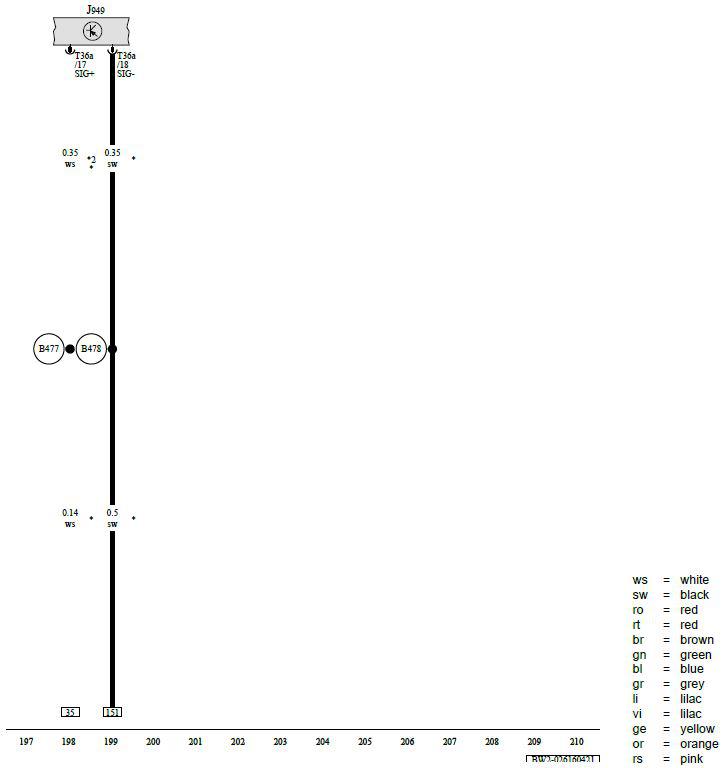

Control Module for Emergency Call Module and Communication Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J949 -  Control Module for Emergency Call Module and Communication Unit

T36a -  36-Pin Connector

B477 -  Connection 13 (in Main Wiring Harness)

B478 -  Connection 14 (in Main Wiring Harness)

* -  For Vehicles with Emergency Call Module

*2 -  The Color of the Wires Depends on Vehicle Equipment
