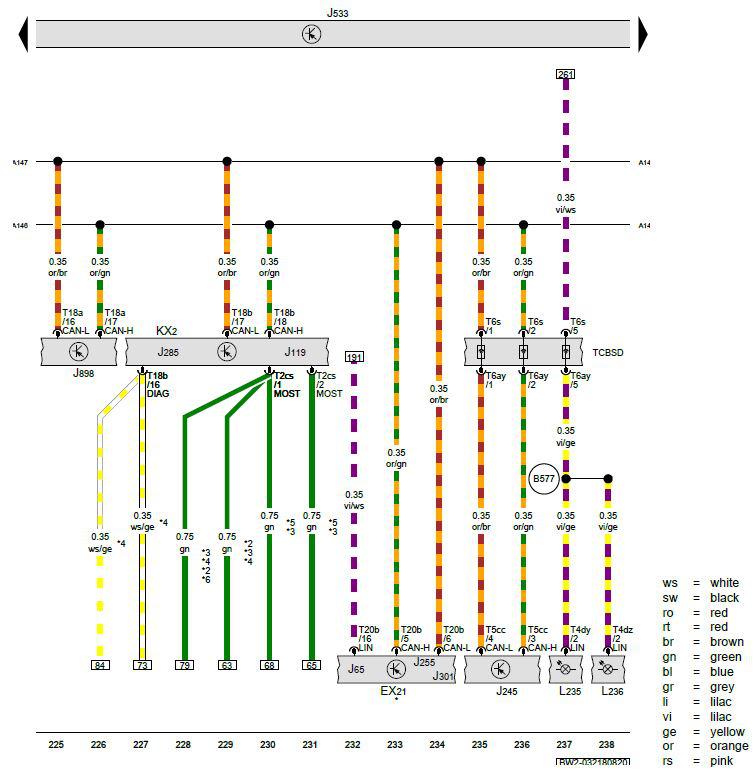

Heater and A/C Controls, Heater Control Module, Multifunction Indicator, Sunroof Control Module, Climatronic Control Module, Instrument Cluster Control Module, A/C Control Module, Data Bus on Board Diagnostic Interface, Windshield Projection Head Up Display Control Module, Instrument Cluster, Roof Contour Illumination Lamp 1, Roof Contour Illumination Lamp 2
EX21 - Heater and A/C Controls
J65 - Heater Control Module
J119 - Multifunction Indicator
J245 - Sunroof Control Module
J255 - Climatronic Control Module
J285 - Instrument Cluster Control Module
J301 - A/C Control Module
J533 - Data Bus on Board Diagnostic Interface
J898 - Windshield Projection Head Up Display Control Module
KX2 - Instrument Cluster
L235 - Roof Contour Illumination Lamp 1
L236 - Roof Contour Illumination Lamp 2
T2cs - 2-Pin Connector, Black
T4dy - 4-Pin Connector, Black
T4dz - 4-Pin Connector, Black
T5cc - 5-Pin Connector, Black
T6ay - 6-Pin Connector, Black
T6s - 6-Pin Connector, Black
T18a - 18-Pin Connector, Naturally Cloudy
T18b - 18-Pin Connector, Black
T20b - 20-Pin Connector, Black
TCBSD - CAN Bus Sunroof Coupling Point
A146 - Comfort System CAN Bus High Connection (in Instrument Panel Wiring Harness)
A147 - Comfort System CAN Bus Low Connection (in Instrument Panel Wiring Harness)
B577 - LIN Bus Connection (in Roof Wiring Harness)
* - Refer to Applicable Wiring Diagram
*2 - For Vehicles with Sound System
*3 - Fiber Optic Cable
*4 - Depending on Equipment
*5 - For Vehicles Without Sound System
*6 - For Vehicles with TV Tuner
