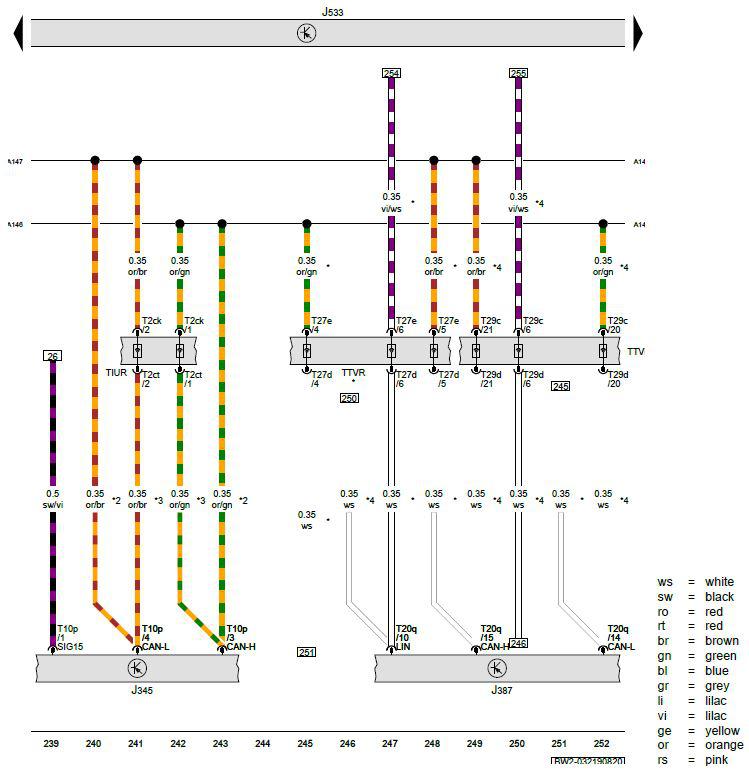

Towing Recognition Control Module, Front Passenger Door Control Module, Data Bus on Board Diagnostic Interface
J345 - Towing Recognition Control Module
J387 - Front Passenger Door Control Module
J533 - Data Bus on Board Diagnostic Interface
T2ck - 2-Pin Connector, Black
T2ct - 2-Pin Connector, Black
T10p - 10-Pin Connector, Black
T20q - 20-Pin Connector, Black
T27d - 27-Pin Connector, Black
T27e - 27-Pin Connector, Black
T29c - 29-Pin Connector, White
T29d - 29-Pin Connector, White
TIUR - Coupling Point in Interior, Bottom Right
TTVR - Right Front Door Coupling Point
A146 - Comfort System CAN Bus High Connection (in Instrument Panel Wiring Harness)
A147 - Comfort System CAN Bus Low Connection (in Instrument Panel Wiring Harness)
* - For Vehicles without Peripheral Camera
*2 - For Vehicles with Trailer Hitch
*3 - For Vehicles with Trailer Setup
*4 - For Vehicles with Peripheral Camera
