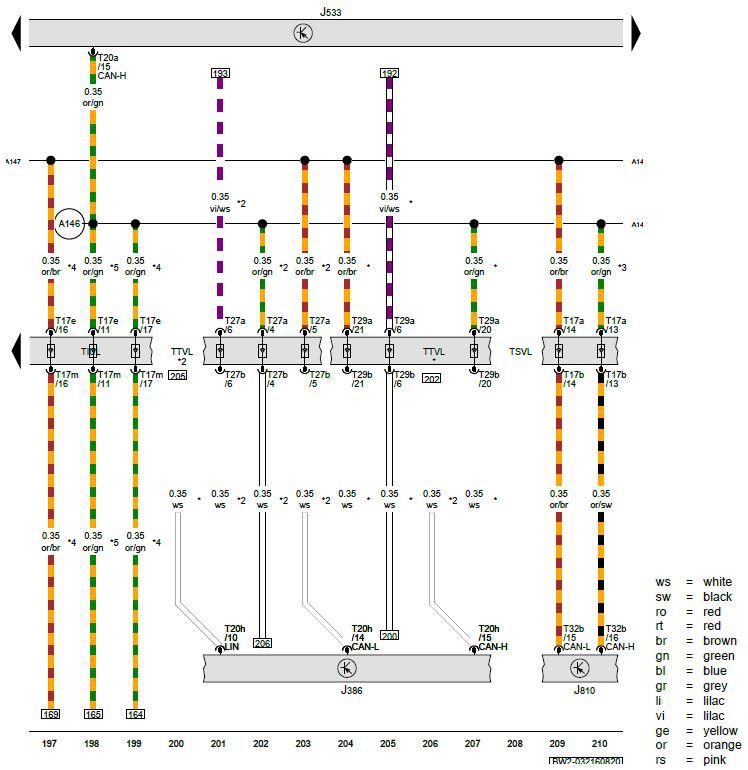

Driver Door Control Module, Data Bus on Board Diagnostic Interface, Driver Seat Adjustment Control Module
J386 - Driver Door Control Module
J533 - Data Bus on Board Diagnostic Interface
J810 - Driver Seat Adjustment Control Module
T17a - 17-Pin Connector, Red
T17b - 17-Pin Connector, Red
T17e - 17-Pin Connector, Blue
T17m - 17-Pin Connector, Blue
T20a - 20-Pin Connector, Red
T20h - 20-Pin Connector, Black
T27a - 27-Pin Connector, Black
T27b - 27-Pin Connector, Black
T29a - 29-Pin Connector
T29b - 29-Pin Connector, White
T32b - 32-Pin Connector, Gray
TIUL - Coupling Point in Interior, Bottom Left
TSVL - Left Front Seat Coupling Station
TTVL - Left Front Door Coupling Point
A146 - Comfort System CAN Bus High Connection (in Instrument Panel Wiring Harness)
A147 - Comfort System CAN Bus Low Connection (in Instrument Panel Wiring Harness)
* - For Vehicles with Peripheral Camera
*2 - For Vehicles without Peripheral Camera
*3 - The Color of the Wires Depends on Vehicle Equipment
*4 - Through December 2017
*5 - From December 2017
