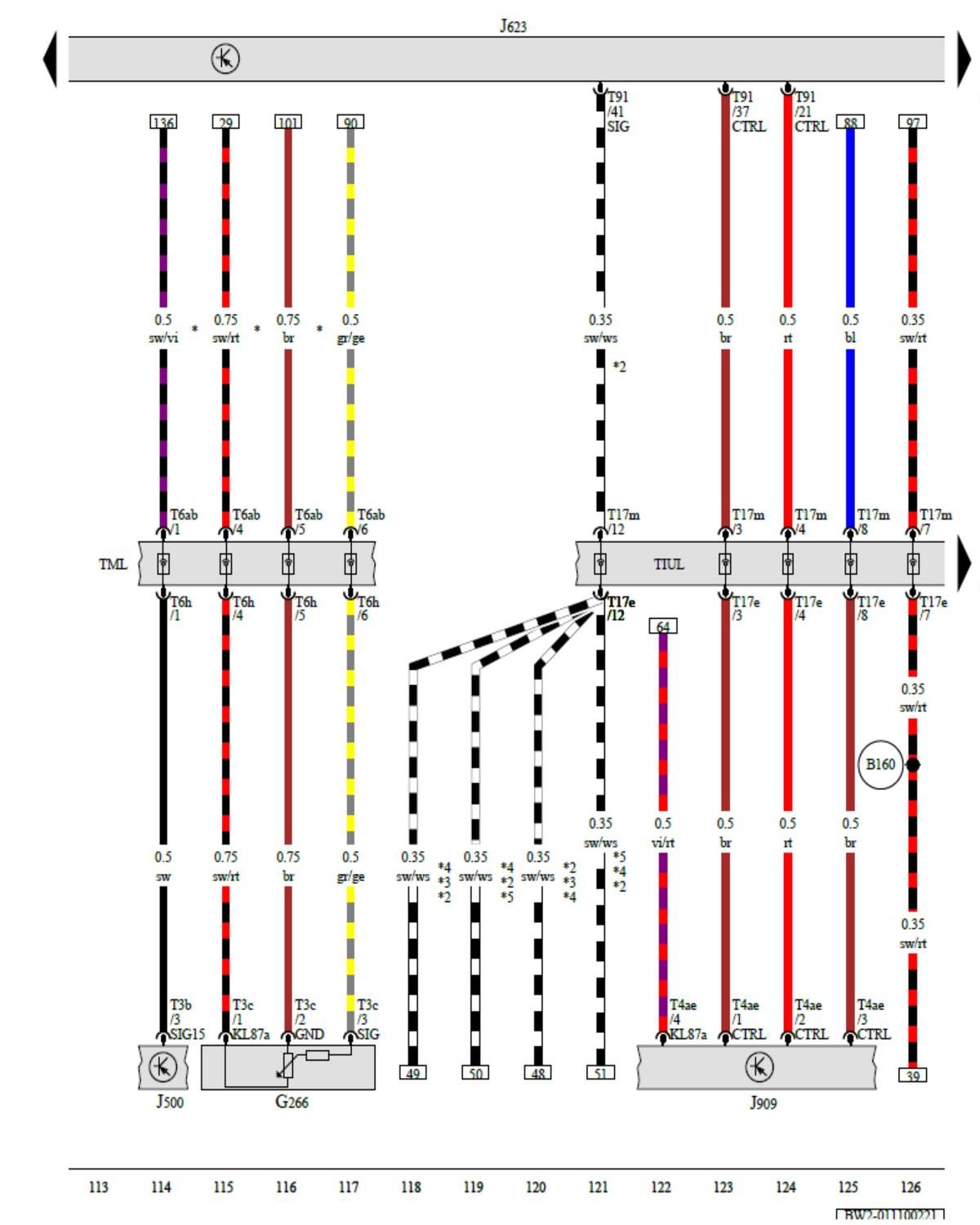

Oil Level Thermal Sensor, Power Steering Control Module, Access/Start System Interface: Notes

GWWBW2-011101217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
