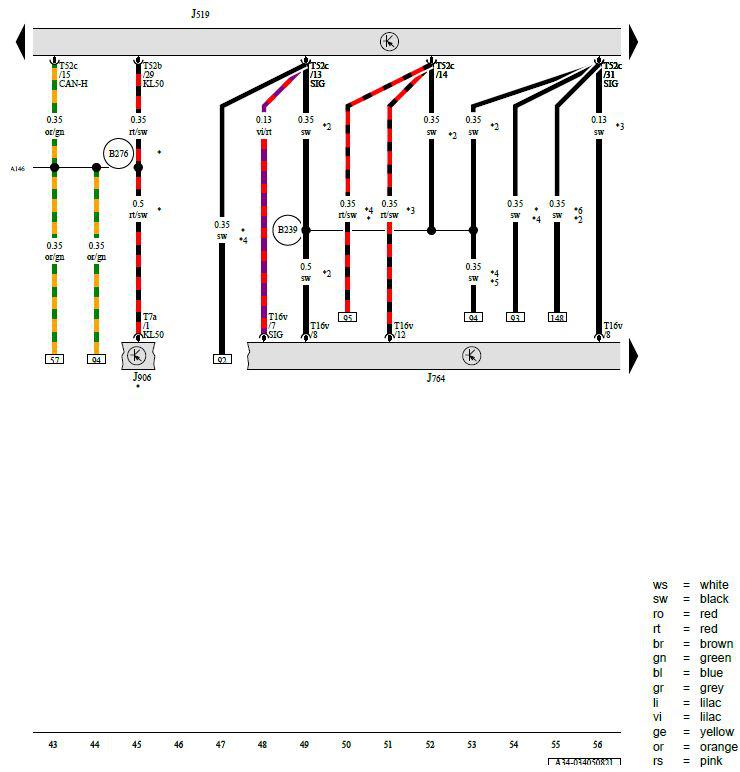

Vehicle Electrical System Control Module, Electronic Steering Column Lock Control Module, Starter Relay 1
J519 - Vehicle Electrical System Control Module
J764 - Electronic Steering Column Lock Control Module
J906 - Starter Relay 1
T7a - 7-Pin Connector, Red
T16v - 16-Pin Connector, Black
T52b - 52-Pin Connector, Naturally Cloudy
T52c - 52-Pin Connector, Brown
A146 - Comfort System CAN Bus High Connection (in Instrument Panel Wiring Harness)
B239 - Positive Connection 1 (50) (in Interior Wiring Harness)
B276 - Positive Connection (50) (in Main Wiring Harness)
* - For Vehicles with 2.5L Gasoline Engine
*2 - For Vehicles with Engine Remote Start Setup
*3 - For Vehicles Without Engine Remote Start
*4 - For Vehicles Without Access/Start Authorization System
*5 - For Vehicles with 2.0L Gasoline Engine
*6 - For Vehicles with Engine Remote Start
