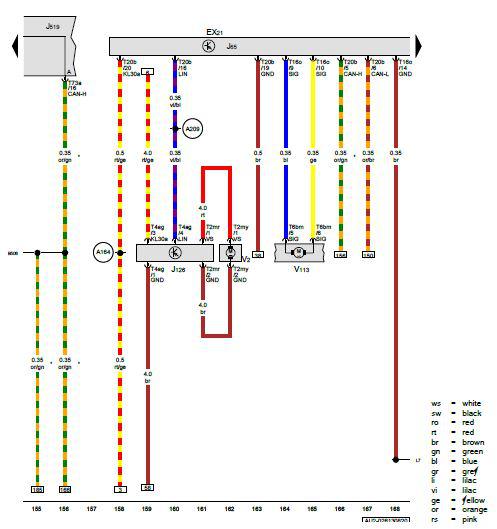

Heater Control Module, Fresh Air Blower Control Module, Vehicle Electrical System Control Module, Fresh Air Blower, Recirculation Door Motor
EX21 - Heater and A/C Controls
J65 - Heater Control Module
J126 - Fresh Air Blower Control Module
J519 - Vehicle Electrical System Control Module
T2mr - 2-Pin Connector
T2my - 2-Pin Connector
T4ag - 4-Pin Connector
T6bm - 6-Pin Connector
T16o - 16-Pin Connector
T20b - 20-Pin Connector
T73a - 73-Pin Connector, Black
V2 - Fresh Air Blower
V113 - Recirculation Door Motor
A164 - Positive Connection 2 (30a) (in Instrument Panel Wiring Harness)
A209 - LIN Bus Connection 1 (in Instrument Panel Wiring Harness)
B506 - Comfort CAN Bus High Connection (in Interior Wiring Harness)
L7 - Connection 3 (in A/C Unit Wiring Harness)
* - The Color of the Wires Depends on Vehicle Equipment
