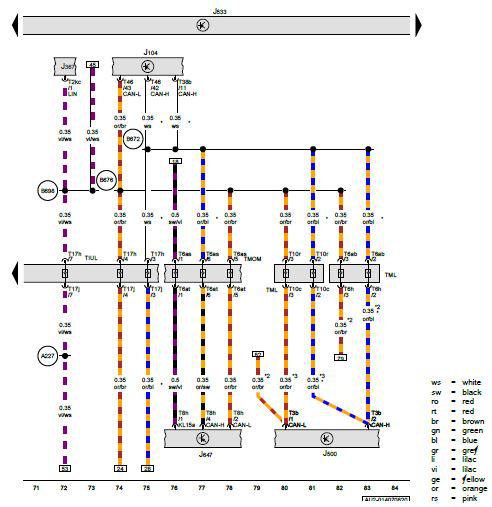

ABS Control Module, Battery Monitoring Control Module, Power Steering Control Module, Data Bus on Board Diagnostic Interface

G00608564Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J104 -  ABS Control Module

J367 -  Battery Monitoring Control Module

J500 -  Power Steering Control Module

J533 -  Data Bus on Board Diagnostic Interface

J647 -  Differential Locks Control Module

T2kc -  2-Pin Connector

T3b -  3-Pin Connector

T6ab -  6-Pin Connector, Black

T6as -  6-Pin Connector, Gray

T6at -  6-Pin Connector, Gray

T6h -  6-Pin Connector

T8h -  8-Pin Connector

T10c -  10-Pin Connector, Black

T10r -  10-Pin Connector, Black

T17h -  17-Pin Connector, Brown

T17j -  17-Pin Connector, Brown

T38b -  38-Pin Connector

T46 -  46-Pin Connector

TIUL -  Coupling Point in Interior, Bottom Left

TML -  Coupling Point in Engine/Motor Compartment, Left

TMOM -  Coupling Point on Engine, Top Center

A227 -  LIN Bus Connection 2 (in Instrument Panel Wiring Harness)

B672 -  Suspension/Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)

B676 -  Suspension/Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)

B698 -  LIN Bus Connection 3 (in Main Wiring Harness)

* -  The Color of the Wires Depends on Vehicle Equipment

*2 -  For Vehicles with Gasoline Engine

*3 -  For Vehicles with Diesel Engine
