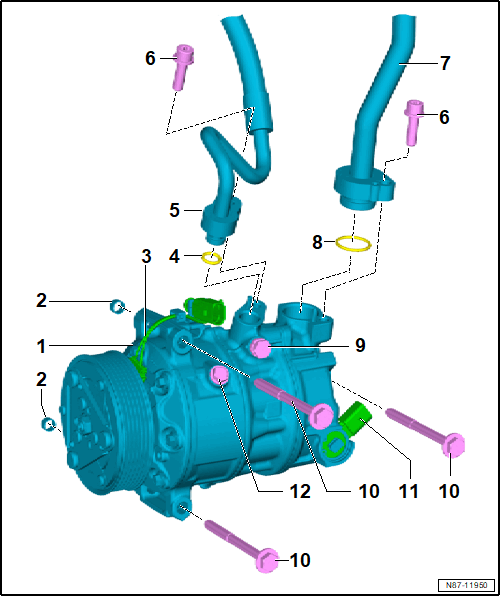

Overview - A/C Compressor Power Unit, With A/C Clutch -N25-
WARNING: This page is about a different car, the 2023 Volkswagen Atlas Cross Sport, 2022 Volkswagen Atlas Cross Sport, 2021 Volkswagen Atlas Cross Sport, and 2020 Volkswagen Atlas Cross Sport. However, it is still accessible from the selected car via links, so may be relevant.
- A/C Compressor
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .
- Removing and installing from the bracket. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .
- Alignment Sleeves
- Quantity: 2
- A/C Clutch -N25-
- Seal
- Replace after removing
- There are different versions. Refer to the Parts Information.
- Coat with refrigerant oil before installing.
- Refrigerant Line
- High-pressure side
- Bolts
- 22 Nm
- Quantity: 2
- Refrigerant Line
- Low-pressure side
- Seal
- Replace after removing
- There are different versions. Refer to the Parts Information.
- Coat with refrigerant oil before installing.
- Pressure Relief Valve
- Check using the Vehicle Diagnostic Tester PRESSURE RELIEF VALVE ON A/C COMPRESSOR, CHECKING .
- Bolts
- 25 Nm
- Quantity: 3
- A/C Compressor Regulator Valve -N280-
- Replace after removing
- Checking with the Vehicle Diagnostic Tester
- Removing and Installing. Refer to A/C Compressor Regulator Valve -N280-, REMOVING AND INSTALLING .
- Oil Drain Plug
- 15 Nm
- Replace the oil drain plug/seal after removal
- Only remove on an empty refrigerant circuit
- There are different versions. Refer to the Parts Information.
