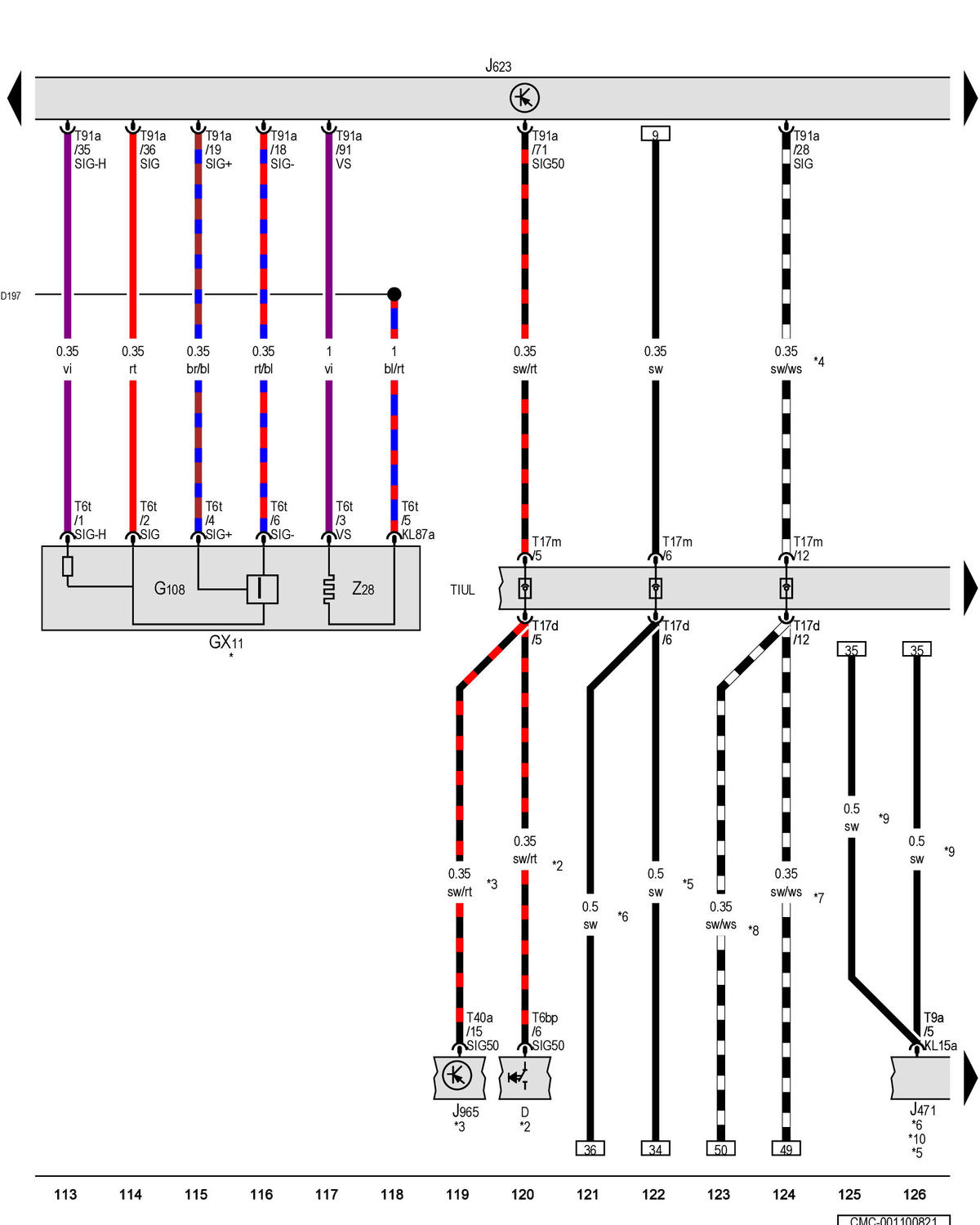

Ignition/Starter Switch, Oxygen Sensor 2 Before Catalytic Converter, Remote Start System Relay, Engine/Motor Control Module, Access/Start System Interface
D
Ignition/Starter Switch
GX11
Oxygen Sensor 2 Before Catalytic Converter
G108
Heated Oxygen Sensor 2
J471
Remote Start System Relay
J623
Engine/Motor Control Module
J965
Access/Start System Interface
T6bp
6-Pin Connector
T6t
6-Pin Connector, Brown
T9a
9-Pin Connector, Gray
T17d
17-Pin Connector, Blue
T17m
17-Pin Connector, Blue
T40a
40-Pin Connector
T91a
91-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
Z28
Oxygen Sensor 2 Heater
D197
Connection 5 (87A) (in Engine/Motor Compartment Wiring Harness)
*
Pre-Wired Component
*2
For Vehicles Without Access/Start Authorization System
*3
For Vehicles with Access/Start Authorization System
*4
For Vehicles with Cruise Control System
*5
For Vehicles with Engine Remote Start Setup
*6
For Vehicles with Engine Remote Start
*7
For Vehicles Without Heated Steering Wheel
*8
For Vehicles with Heated Steering Wheel
*9
Depending on Equipment
*10
Refer to Applicable Wiring Diagram
