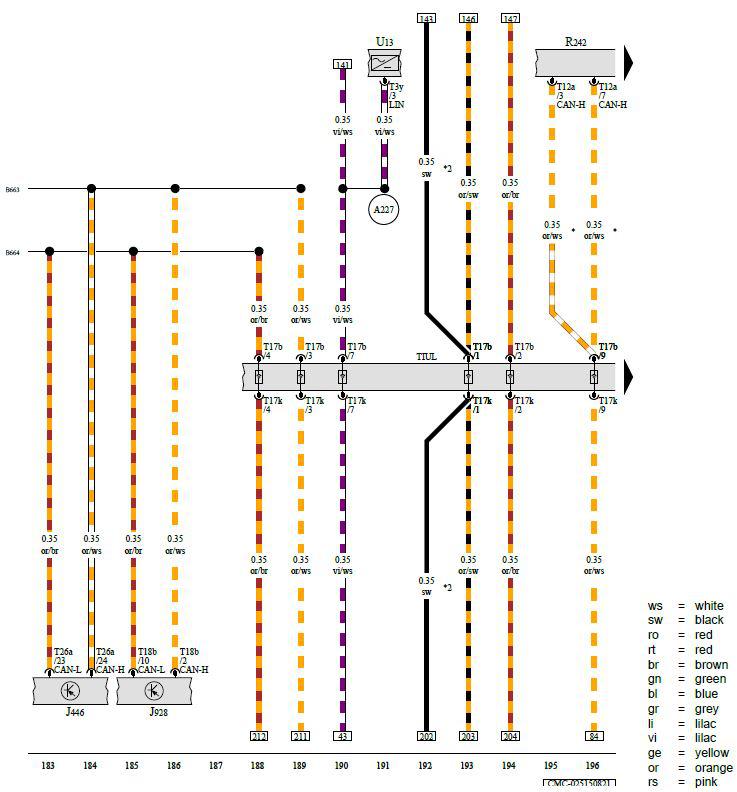

Parking Aid Control Module, Peripheral Camera Control Module, Driver Assistance Systems Front Camera, Converter with Socket, 12 V-230 V

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J446 -  Parking Aid Control Module

J928 -  Peripheral Camera Control Module

R242 -  Driver Assistance Systems Front Camera

T3y -  3-Pin Connector, Black

T12a -  12-Pin Connector, Black

T17b -  17-Pin Connector, Brown

T17k -  17-Pin Connector, Brown

T18b -  18-Pin Connector, Black

T26a -  26-Pin Connector, Black

TIUL -  Coupling Point in Interior, Bottom Left

U13 -  Converter with Socket, 12 V-230 V

A227 -  LIN Bus Connection 2 (in Instrument Panel Wiring Harness)

B663 -  Suspension Sensor CAN Bus High Connection (in Main Wiring Harness)

B664 -  Suspension Sensor CAN Bus Low Connection (in Main Wiring Harness)

* -  Depending on Equipment

*2 -  Running Change
