Length Adjustment

Gauge - Frameless Window: T10391

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

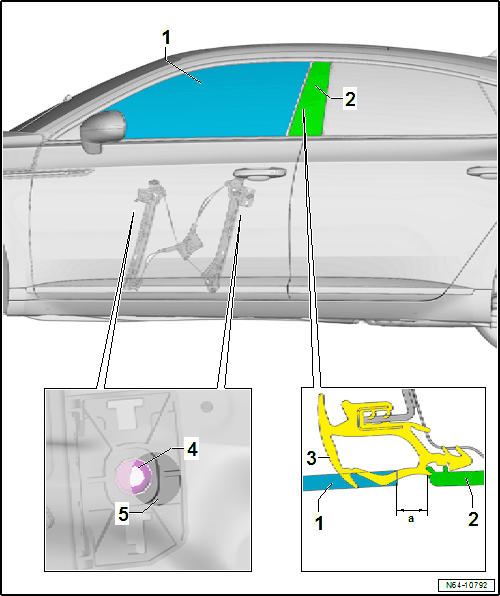

Adjustment Dimensions

• Door window -1- must be guided at least over the elevation of seal -3-.
• -Dimension a- for the door window -1- with respect to the trim -2- must be uniformly 10 mm ± 1 mm.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- The bolts -4- for the door window can be accessed through the openings.

-- Loosen the bolts -4- but do not remove them.

-- Adjust the door window.

-- Tighten the bolts -4-.

Tightening Specifications

• Bolts. Refer to OVERVIEW - FRONT DOOR WINDOW .
