Transmission Identification

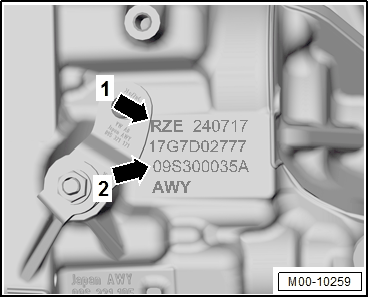

Code and Production Date -arrow- of the Transmission -1-
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
Code letter -arrow 1-
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
Example:
"Automatic transmission 09S" -arrow 2-
| RZE |
24 |
07 |
17 |
| I |
I |
I |
I |
| Codes |
Day |
Month |
Production year |
The transmission code is also listed on the vehicle data label.
