Left/Right Rear Treble Speaker -R14- / -R16-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the lower left B-pillar trim panel, refer to Passenger Compartment Trim .

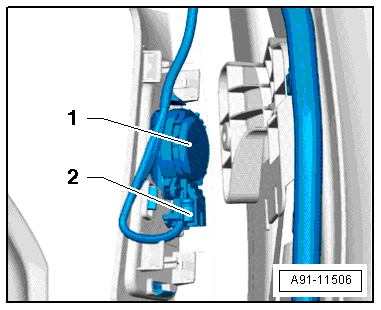

-- Release and disconnect the connector -2- from the Left Rear Treble Speaker -R14- -1-.
-- Press the Left Rear Treble Speaker -R14- -1- out of the tabs and remove it from the trim.
