Removal And Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.

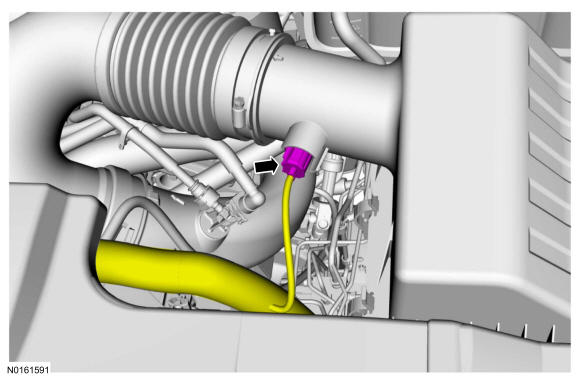

Disconnect the Intake Air Temperature (IAT) sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

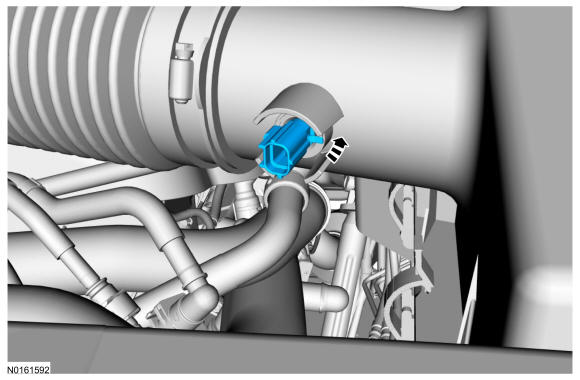

Rotate the IAT sensor counter clockwise and remove.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
To install, reverse the removal procedure.
