Removal And Installation
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the Audio Front Control Module(ACM). Refer to Audio Control Module (ACM) .
- 2.

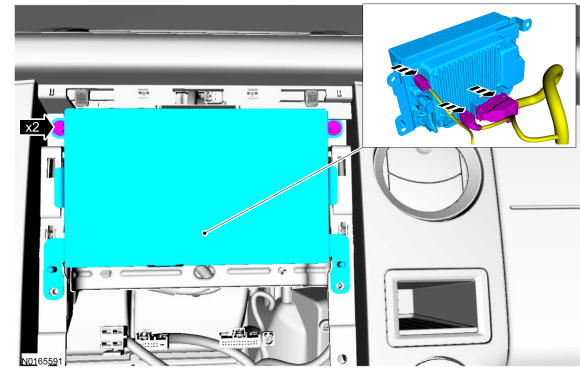

Remove the 2 bolts and the Front Display Interface Module(FDIM).- Disconnect the electrical connector(s).
- To install, tighten to 2.5 Nm (23 lb-in).
- 3.NOTE: This step is only required if the FDIM is being replaced.
Remove the 3 bolts and separate the FDIM from the Accessory Protocol Interface Module(APIM).
- Disconnect the electrical connector.
- To install, tighten the screws to 0.6 Nm (5 lb-In).
