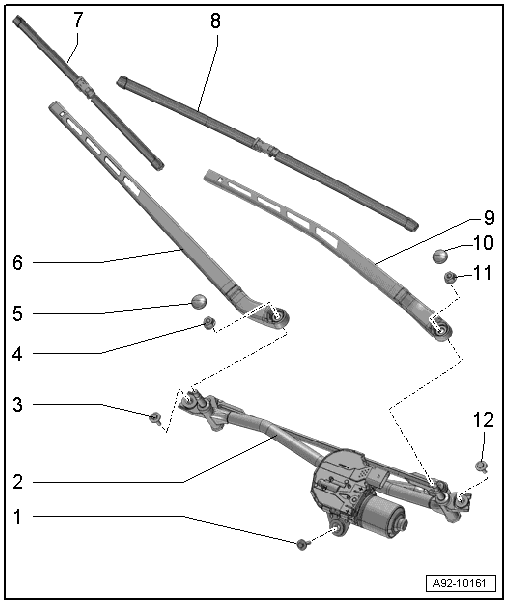

Overview - Windshield Wiper System
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Tightening sequence, refer to Fig 2
- Windshield Wiper Motor -V-
- With Wiper Motor Control Module -J400-
- Removing and installing, refer to Windshield Wiper Motor -V-, REMOVING AND INSTALLING .
- Bolt
- Tightening sequence, refer to Fig 2
- Nut
- 21 Nm
- Cap
- Passenger Side Windshield Wiper Arm
- There are different lengths, refer to the Parts Information.
- Removing and installing, refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting, refer to WINDSHIELD WIPER ARMS, ADJUSTING .
- Passenger Side Windshield Wiper Blade
- There are different lengths, refer to the Parts Information.
- Replacing, refer to WIPER BLADE, REMOVING AND INSTALLING .
- Driver Side Windshield Wiper Blade
- There are different lengths, refer to the Parts Information.
- Replacing, refer to WIPER BLADE, REMOVING AND INSTALLING .
- Driver Side Windshield Wiper Arm
- There are different lengths, refer to the Parts Information.
- Removing and installing, refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting, refer to WINDSHIELD WIPER ARMS, ADJUSTING .
- Cap
- Nut
- 21 Nm
- Bolt
- Tightening sequence, refer to Fig 2

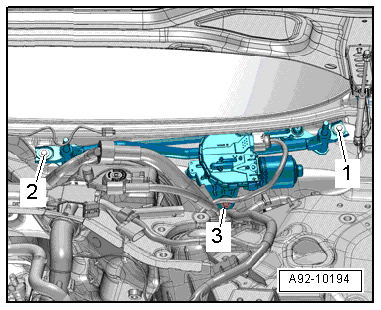

-- Tighten the bolts in stages in the sequence shown:
| Stage | Bolts | Tightening specification |
|---|---|---|
| 1. | -1 though 3- | Install by hand as far as the stop. |
| 2. | -1 though 3- | 8 Nm |
