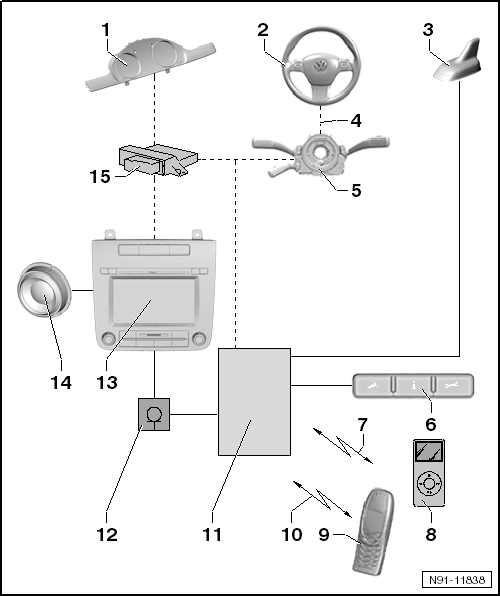

Overview - Telephone System With BLUETOOTH Technology, "Rcd 550" Radio System
WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Instrument Cluster Control Module -J285-
- Left Multifunction Buttons on Steering Wheel -E440- and Right Multifunction Buttons on Steering Wheel -E441-
- For more information regarding the multifunction steering wheel. Refer to MULTIFUNCTION STEERING WHEEL .
- Telephone Antenna -R65-
- In the Roof Antenna -RX5-
- CAN Bus Wire Connections
- Steering Column Electronics Control Module -J527-
- In the steering column switch
- Emergency Call Button -E276-
- Removing and installing. Refer to Emergency Call Button -E276-, REMOVING AND INSTALLING
- Wireless Radio Connection for "A2DP Audio Streaming"
- Multimedia Player
- Not with vehicle delivery
- Cellular Telephone -R54-
- Wireless Radio Connection for "Hands Free Profile"
- Operating Electronics and Telephone Control Module -J412-
- Removing and installing. Refer to Cell Phone Operating Electronics Control Module -J412-, REMOVING AND INSTALLING
- Right Front Microphone -R141- in the Roof Console
- Removing and installing. Refer to INFOTAINMENT MICROPHONE
- Radio -R-
- Refer to "RCD 550" Sound System. Refer to RADIO SYSTEM "RCD 550" .
- Speaker System
- Data Bus On Board Diagnostic Interface -J533-
