Overview - Telephone System With BLUETOOTH Technology, "RNS 850" Radio Navigation System
WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The cell phone operating electronics control module is not installed in the "RNS 850".

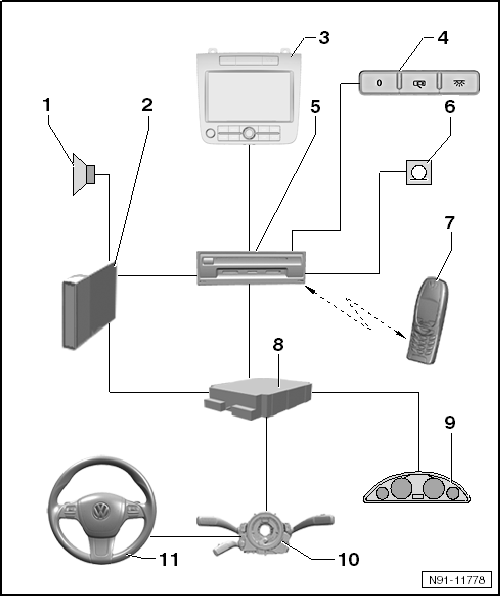

Fig 1: Exploded View Of Telephone System With Bluetooth Technology, "Rns 850" Radio Navigation System
- Speaker System
- Radio -R- or Digital Sound System Control Module -J525-
- Additional information in the radio article. Refer to RADIO .
- Front Information Display Control Head -J685- in center of the instrument panel
- Additional information in the article regarding the front information display control head. Refer to FRONT INFORMATION DISPLAY CONTROL HEAD .
- Emergency Call Button -E276-
- Removing and installing. Refer to Emergency Call Button -E276-, REMOVING AND INSTALLING
- Information Electronics Control Module 1 -J794-
- With integrated Bluetooth antenna
- Additional information in the article regarding Information Electronics Control Module 1 -J794-. Refer to Information Electronics Control Module 1 -J794- .
- Right Front Microphone -R141- in the Roof Console
- Removing and installing. Refer to INFOTAINMENT MICROPHONE
- Cellular Telephone -R54-
- Data Bus On Board Diagnostic Interface -J533-
- Instrument Cluster Control Module -J285-
- Steering Column Electronics Control Module -J527-
- In the steering column switch
- Left Multifunction Buttons on Steering Wheel -E440- and Right Multifunction Buttons on Steering Wheel -E441-
- For more information regarding the multifunction steering wheel. Refer to MULTIFUNCTION STEERING WHEEL .
