Overview - Speaker System

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

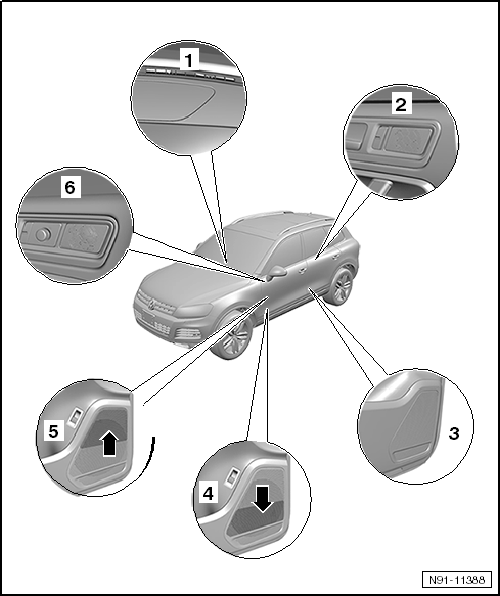

Fig 1: Exploded View Of Speaker System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Center Mid-Treble Speaker -R158-
- Installed in the center of the instrument panel in front of the windshield
- Optionally installed on the 16-channel sound system
- Function as a center speaker
- Removing and installing. Refer to CENTER MID-TREBLE SPEAKER, REMOVING AND INSTALLING
Left Rear Treble Speaker -R14- or Right Rear Treble Speaker -R16-
- Installed in the door trim
- Removing and installing. Refer to REAR TREBLE SPEAKERS, REMOVING AND INSTALLING
Left Rear Bass Speaker -R15- or Right Rear Bass Speaker -R17-
- Installed in the door
- Removing and installing. Refer to REAR BASS SPEAKERS, REMOVING AND INSTALLING
Left Front Bass Speaker -R21- or Right Front Bass Speaker -R23-
- Installed in the door
- Removing and installing. Refer to FRONT BASS SPEAKER, REMOVING AND INSTALLING
Left Front Midrange Speaker -R103- or Right Front Midrange Speaker -R104-
- Installed in the door trim
- Optionally installed on the 12-channel sound system
- Always installed on the 16-channel sound system
- Removing and installing. Refer to FRONT MIDRANGE SPEAKER, REMOVING AND INSTALLING
Left Front Treble Speaker -R20- or Right Front Treble Speaker -R22-
- Installed in the door trim
- Removing and installing. Refer to FRONT TREBLE SPEAKER, REMOVING AND INSTALLING
