"Rcd 550", System Overview

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

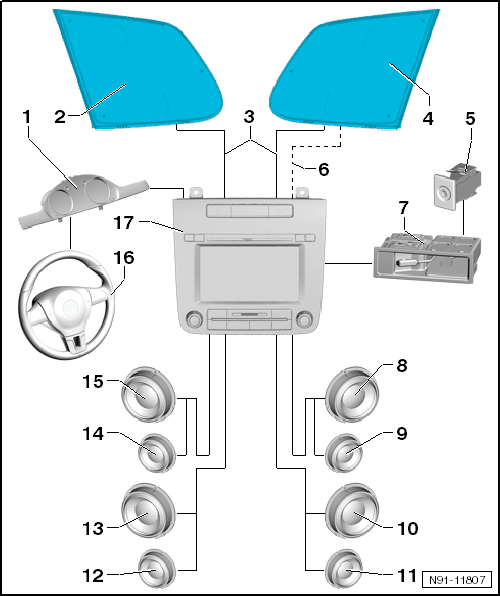

Fig 1: Exploded View Of "RCD 550"
GWWN91-11807Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Instrument Cluster Control Module -J285-
  2. Left Rear Side Window With Antenna Modules
  3. Antenna Wire Connections for AM/FM and FM2
  4. Right Rear Side Windows with Antenna Modules
  5. External Audio Source Connection -R199-
  6. DAB (Digital Audio Broadcasting) Antenna Wire Connections
  7. External Multimedia Device Interface -R215-
  8. Right Front Bass Speaker -R23-
  9. Right Front Treble Speaker -R22-
  10. Right Rear Bass Speaker -R17-
  11. Right Rear Treble Speaker -R16-
  12. Left Rear Treble Speaker -R14-
  13. Left Rear Bass Speaker -R15-
  14. Left Front Treble Speaker -R20-
  15. Left Front Bass Speaker -R21-
  16. Multifunction Steering Wheel with Right Multifunction Buttons on Steering Wheel -E441- or Left Multifunction Buttons on Steering Wheel -E440-
  17. Radio -R-
