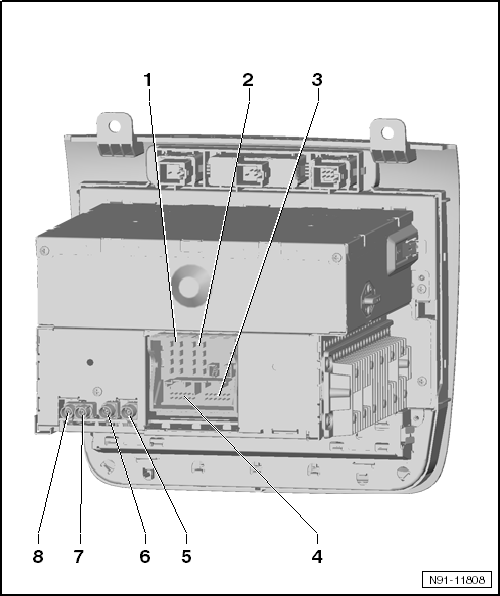

"Rcd 550" Connector Overview: Notes
WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- 8- Pin Multi-Pin Connector 1 Inside the Connector Housing
- Terminal assignment. Refer to 8-PIN MULTI-PIN CONNECTOR 1, FOR SPEAKER OUTPUTS
- 8- Pin Multi-Pin Connector 2 Inside the Connector Housing
- Terminal assignment. Refer to 8-PIN MULTI-PIN CONNECTOR 2, FOR THE POWER SUPPLY AND CAN-BUS
- 12-Pin Multi-Pin Connector 3 Inside the Connector Housing
- Terminal assignment. Refer to 12-PIN MULTI-PIN CONNECTOR 3, FOR TELEPHONE AND MICROPHONE SIGNALS
- 12-Pin Multi-Pin Connector 4 Inside the Connector Housing
- Terminal assignment. Refer to 12-PIN MULTI-PIN CONNECTOR 4, FOR CD CHANGER CONTROLS AND THE CD AUDIO INPUT SIGNALS
- Rearview Camera/Peripheral Camera System Signal Connection
- Antenna Connection
- DAB (Digital Audio Broadcasting) antenna connection input, option
- Antenna Connection
- Antenna FM 2
- Antenna Connection
- FM/AM antenna
