MULTIFUNCTION Button Switch Element, Removing And Installing: Removing:
WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
Perform the following steps:
-- Turn off the ignition and all electrical equipment.
-- Remove the multifunction button in the steering wheel. Refer to MULTIFUNCTION BUTTON IN THE STEERING WHEEL, REMOVING AND INSTALLING .

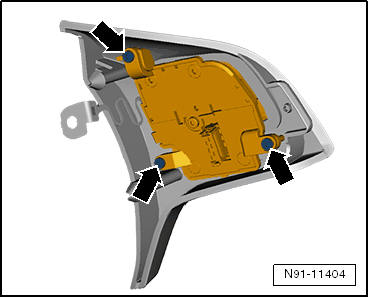

-- Unscrew the screws on the back of the multifunction button -arrows- and remove the switch element.
